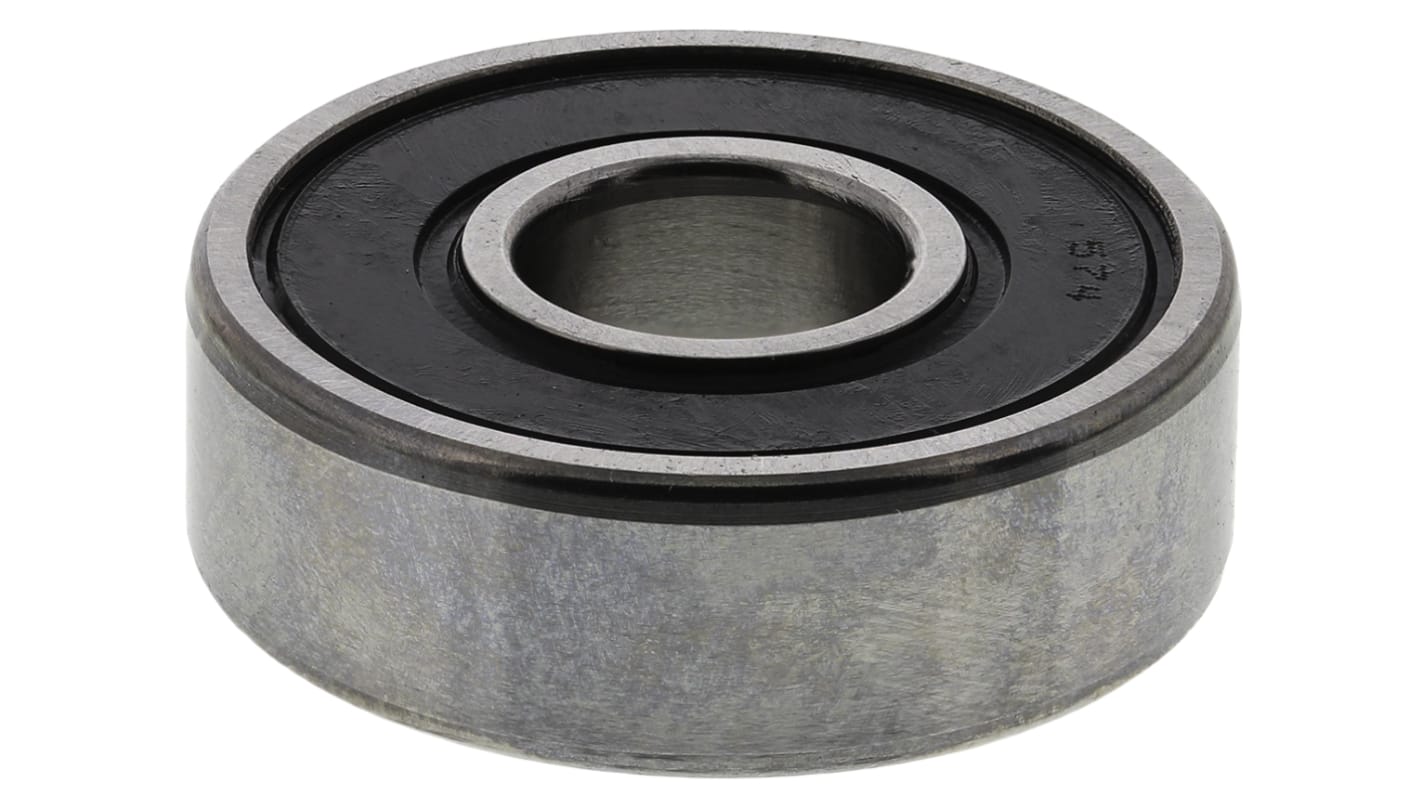

8mm Deep Groove Ball Bearing 22mm O.D

  • RS Stock No. 667-1166
  • Mfr. Part No. 608-2RSH/C3
  • Manufacturer SKF
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

Deep Groove Metric Ball Bearings - Sealed

Sealed (2RS1) bearings are fitted with two synthetic rubber seals to prevent leakage of lubricant and entry of dust, water and other harmful material.

Features and Benefits

• The seals are made from an oil and wear-resistant synthetic rubber with a steel reinforcement
• Operating temperature from -40°C to +120°C
• Accepts radial and axial loads
• Both standard and C3 clearance available
• Versatile

Application Information

Deep groove ball bearings are suitable for high speeds and are robust in operation.

Specifications
Attribute Value
Inside Diameter 8mm
Outside Diameter 22mm
Ball Bearing Type Deep Groove
Race Width 7mm
End Type Sealed
Number of Rows 1
Static Load Rating 1.37kN
Material Steel
Cage Material Steel
Race Type Plain
Dynamic Load Rating 3.45kN
Bore Type Parallel
45 Within 4 working day(s) (Global stock)
34 Within 4 working day(s) (Global stock)
Price Each
Was MYR25.01
MYR 24.75
units
Per unit
1 - 5
MYR24.75
6 - 24
MYR23.41
25 +
MYR22.50
