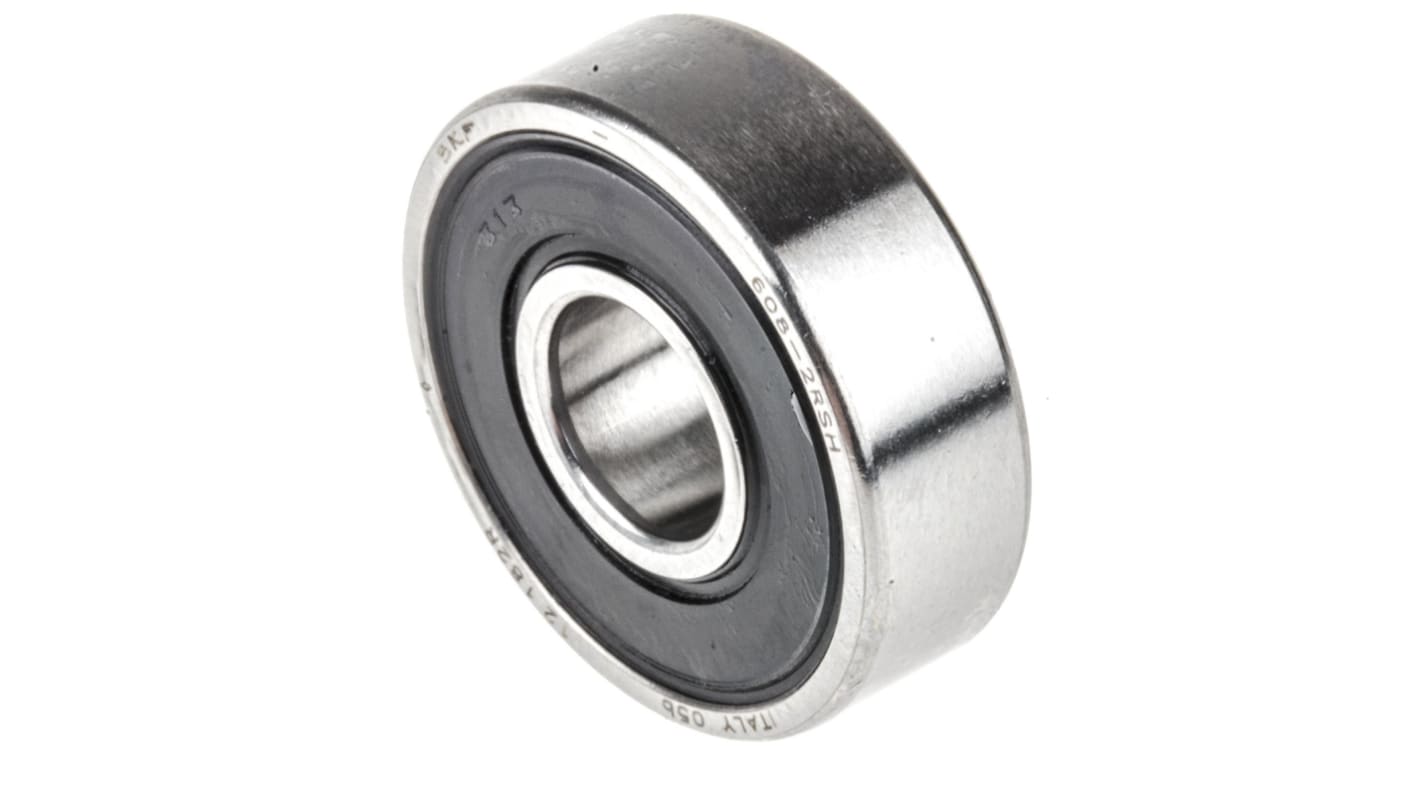

SKF 608-2RSH Single Row Deep Groove Ball Bearing- Both Sides Sealed 8mm I.D, 22mm O.D
- RS Stock No.:
- 441-9953
- Mfr. Part No.:
- 608-2RSH
- Manufacturer:
- SKF
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
895 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR32.08
| Units | Per Unit |
| 1 - 24 | MYR32.08 |
| 25 - 49 | MYR31.45 |
| 50 + | MYR30.82 |
- RS Stock No.:
- 441-9953
- Mfr. Part No.:
- 608-2RSH
- Manufacturer:
- SKF
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- IT
Product Details
SKF Deep-Groove Ball Bearing, 8 mm ID, 22 mm OD - 608-2RSH
Need a ball bearing that can support both radial and axial loads at high speeds? This SKF sealed deep-groove ball bearing is a versatile single-row bearing that delivers high performance along with a dynamic load rating of 3.45 kN and a static load rating of 1.37 kN. It's made from corrosion-resistant steel and is fitted with two steel-reinforced synthetic rubber seals to keep lubricant in and dust out.
• Deep raceway grooves for high performance and high load capacity
• Operating temperature range of -40°C to +120°C makes it suitable for a wide range of environments
• Parallel bore type bearing fits directly onto the shaft
• Sealed ball bearing type offers a longer lifespan
• Operating temperature range of -40°C to +120°C makes it suitable for a wide range of environments
• Parallel bore type bearing fits directly onto the shaft
• Sealed ball bearing type offers a longer lifespan
Application Information
• Pharmaceuticals
• Engines
• Pumps
• Printing
• Engines
• Pumps
• Printing
What are deep-groove ball bearings?
Deep-groove ball bearings are the most popular type of bearings. They comprise an inner ring and an outer ring with ball bearings in between. The bearings sit in a deep, smooth raceway.
Why use sealed ball bearings?
Ball bearings that rotate at high speed require lubrication and a clean environment to operate properly. Sealed ball bearings keep out dirt and stay lubricated to increase the lifespan of the device.
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 8mm |
| Outside Diameter | 22mm |
| Race Width | 7mm |
| Ball Bearing Type | Single Row Deep Groove Ball Bearing |
| Sealing Arrangement | Both Sides Sealed |
| Bearing Clearance | CN |
| Material | Steel |
| Ball Material | Steel |
| Cage Material | Sheet Metal |
| Number of Rows | 1 |
| Static Load Rating | 1.37kN |
| Dynamic Load Rating | 3.45kN |
| Bore Type | Parallel |
| Bearing Series | 0 Extra Light |
| Model Number p | 6082RS |
| Partial Bearing Code | 608 |
| Race Type | Plain |
