- RS Stock No.:
- 285-1349
- Mfr. Part No.:
- 2200 E-2RS1TN9
- Manufacturer:
- SKF
15 In Global stock for delivery in 4-6 working days for West Malaysia, 5-8 working days for Free Trade Zone, and 7-10 working days for East Malaysia.
68 In Global stock for delivery in 4-6 working days for West Malaysia, 5-8 working days for Free Trade Zone, and 7-10 working days for East Malaysia.
Price Each
MYR237.70
units | Per Unit |
1 - 5 | MYR237.70 |
6 - 11 | MYR232.77 |
12 + | MYR227.09 |
- RS Stock No.:
- 285-1349
- Mfr. Part No.:
- 2200 E-2RS1TN9
- Manufacturer:
- SKF
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

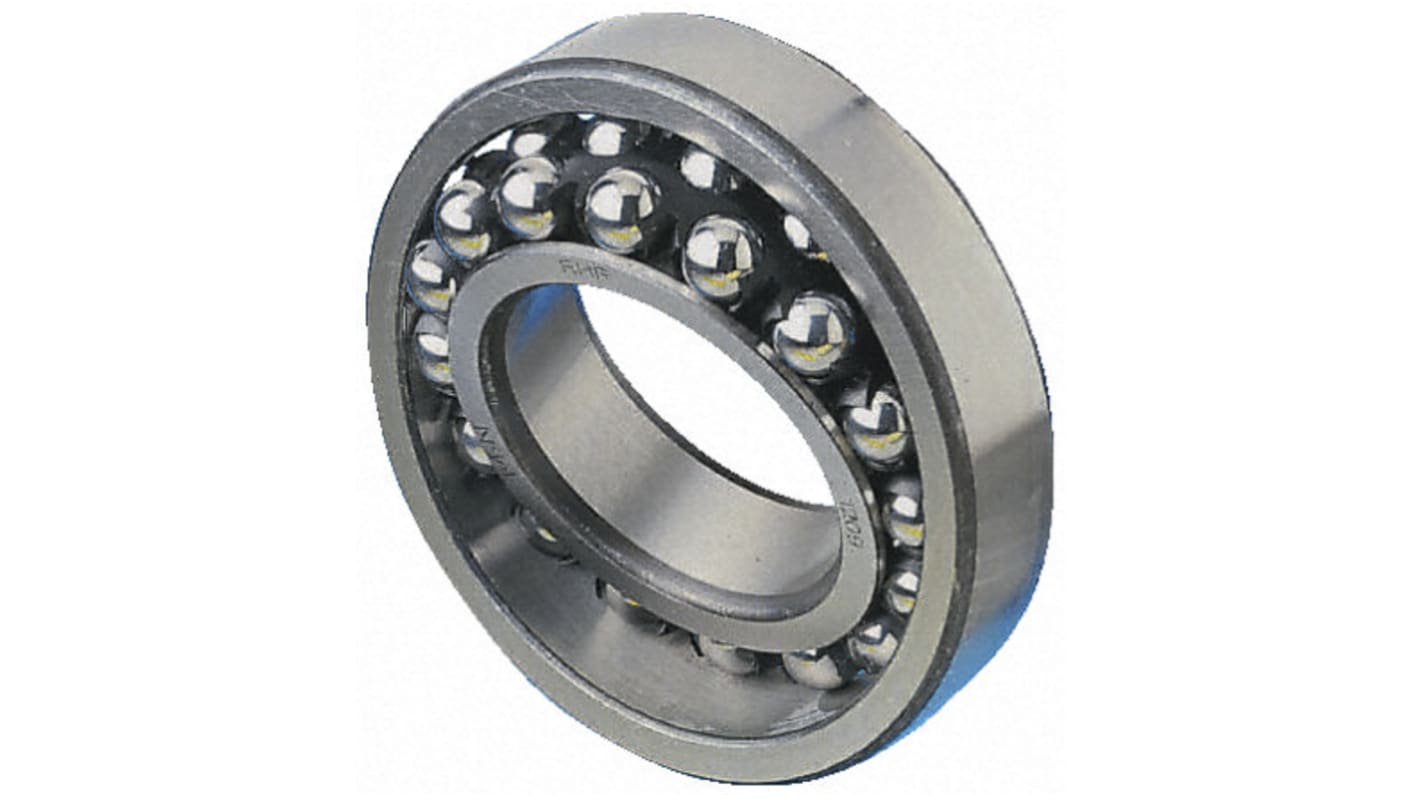

SKF Self Aligning Ball Bearing, Plain Race Type, 10 mm ID - 2200 E-2RS1TN9
This ball bearing from SKF generates very little friction, making it an ideal option for high-speed operations. As it's a self-aligning bearing, it can accommodate misalignment and shaft deflections without these affecting performance. The bearing comes with contact seals on both sides to protect it from dirt and grease, and to extend its life. As it comes pre-greased, it doesn't need much maintenance. The cage of this ball bearing is made from fibreglass-reinforced polyamide, which is an extremely tough material. This makes it well-suited to handling heavy loads.
• Parallel cage type
• Dynamic load rating of 5.53 kN
• Static load rating of 1.18 kN
• Sealed end type
• Two rows
• Plain race type
• Inner diameter of 10 mm
• Outer diameter of 30 mm
• Width of 14 mm
• Dynamic load rating of 5.53 kN
• Static load rating of 1.18 kN
• Sealed end type
• Two rows
• Plain race type
• Inner diameter of 10 mm
• Outer diameter of 30 mm
• Width of 14 mm
Application Information
• Textile industry, such as yarn spindles
• Machinery industry
• Agriculture
• Machinery industry
• Agriculture
What kind of seal is used on this self-aligning ball bearing?
This bearing uses quality, steel-reinforced NBR (nitrile rubber) sealing that's oil-resistant and non-wearing. The bearing is sealed for life and shouldn't be heated above +80°C before mounting.
Specifications
Attribute | Value |
---|---|
Inside Diameter | 10mm |
Outside Diameter | 30mm |
Race Width | 14mm |
Ball Bearing Type | Self Aligning Ball Bearing |
Sealing Arrangement | Both Sides Sealed |
Bearing Clearance | CN |
Material | Steel |
Ball Material | Steel |
Cage Material | Non-metallic |
Number of Rows | 2 |
Static Load Rating | 1.18kN |
Dynamic Load Rating | 5.53kN |
Bore Type | Parallel |
Bearing Series | 2 Light |
Partial Bearing Code | 2200 |
Race Type | Plain |
