RS PRO Axial Fan, 12 V dc, DC Operation, 68m³/h, 2.9W, 180mA Max, 80 x 80 x 25mm
- RS Stock No.:
- 619-7116
- Manufacturer:
- RS PRO
387 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR62.60
| Units | Per Unit |
| 1 - 4 | MYR62.60 |
| 5 - 14 | MYR61.29 |
| 15 - 24 | MYR59.41 |
| 25 - 124 | MYR57.96 |
| 125 + | MYR47.70 |
- RS Stock No.:
- 619-7116
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

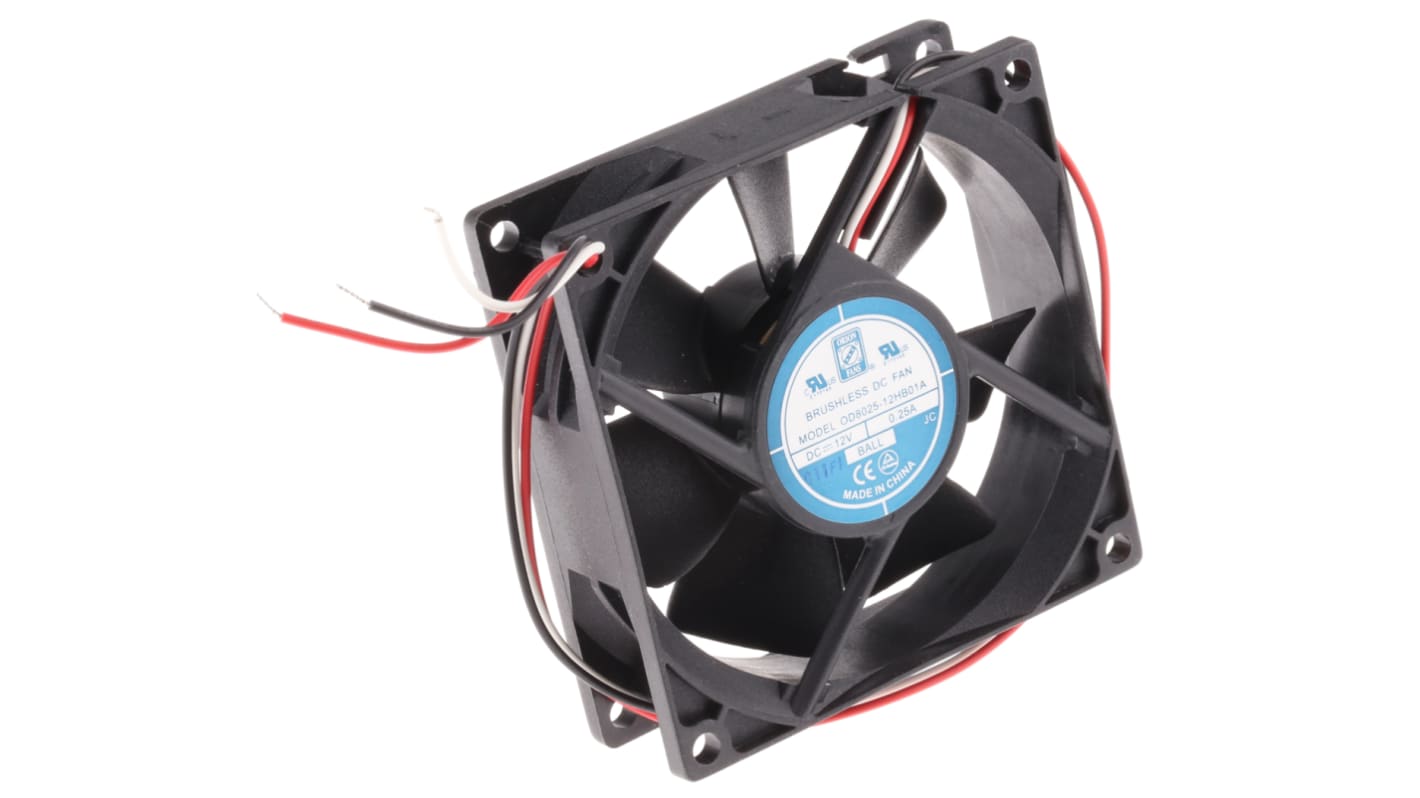

RS PRO 12 V DC, DC Axial Fan, 80 x 80 x 25 mm, 68 m³/h, 2.9 W
Use this axial fan from RS PRO to keep your components and instruments ventilated and cool. It's designed to prevent enclosures and cabinets from overheating to protect your equipment against damage.
The polybutylene terephthalate (PBT) thermoplastic construction ensures the product won't cause a fire outbreak, as it won't ignite. It's resistant to chemicals and stains, so it can be easily wiped clean.
The axial fan complies with the RoHS (Restriction of Hazardous Substances) directives, which means it contains only minimal amounts of any harmful materials. This item is commonly used in server racks to keep routers, patch panels and hubs cool.
The polybutylene terephthalate (PBT) thermoplastic construction ensures the product won't cause a fire outbreak, as it won't ignite. It's resistant to chemicals and stains, so it can be easily wiped clean.
The axial fan complies with the RoHS (Restriction of Hazardous Substances) directives, which means it contains only minimal amounts of any harmful materials. This item is commonly used in server racks to keep routers, patch panels and hubs cool.
Features and Benefits
- DC operation
- Air flow of 68 mm³/h
- Ball-bearing type
- Dimensions of 80 (height) x 80 (width) x 25 mm (depth)
- Backward direction of curve
- Fan speed of 3100 rpm
- Maximum current of 180 mA
- Noise level of 35 dB
- Power consumption of 2.9 W
- Open collector sensor output type
- Auto restart
- Brushless
- Locked rotor protected
- Polarity protected
- Static pressure of 0.15 in H2O
- Supply voltage of 12 V DC
- Lead wire termination type
Approvals
UL, cUL, TUV
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 12 V dc |
| AC or DC Operation | DC |
| Height | 80mm |
| Width | 80mm |
| Power Consumption | 2.9W |
| Depth | 25mm |
| Maximum Current | 180mA |
| Dimensions | 80 x 80 x 25mm |
| Air Flow | 68m³/h |
| Termination Type | Lead Wire |
| Noise Level | 35dB |
| Fan Speed | 3100rpm |
| Direction of Curve | Backward |
| Sensor Type | Open Collector |
| Bearing Type | Ball |
