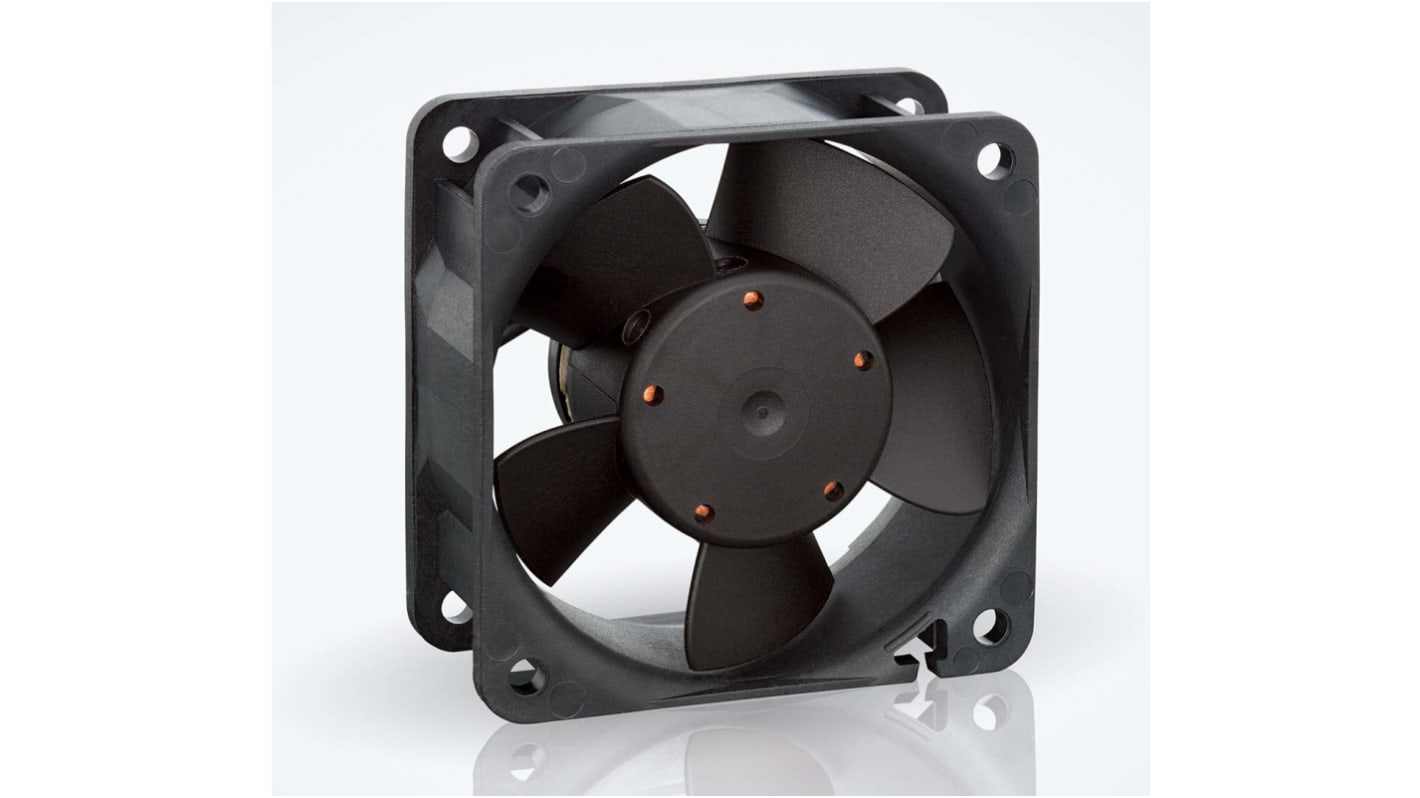

ebm-papst 600N Series Axial Fan, 60 x 60 x 25.4mm, 40m³/h, 2.1W, 24 V dc

  • RS Stock No. 322-4445
  • Mfr. Part No. 614NGN
  • Manufacturer ebm-papst
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): HU
Product Details

ebm-papst Sleeve Bearing Axial Fans

Brought to you by ebm-papst, these sleeve bearing DC axial fans are a perfect addition to your application. A durable and high performing axial fan is an integral part specifically to cooling applications. All models are highly reliable and excellent quality.

Features and Benefits

• Electronic protection against reverse polarity
• Impedance protected against blocking and overloading
• Fibreglass-reinforced plastic
• Integrated electronic commutation

What is an Axial Fan?

An axial fan is a type of fan commonly used within everyday applications, such as air conditioners and computers. It causes both air and gas (depending on the application) to flow directly through it in an axial direction. Allowing the air/gas flow to be axial and both entry and exit. The most common versions tend to have fewer blades than a conventional ducted fan which have similar operations.

What is reverse polarity?

Reverse polarity can create a potential shock hazard and has minimal capabilities of damaging electronics. These ebm-papst axial fans deploy excellent electronic protection against this outcome.

Do these fans have finger guards available?

We do have finger guards available for extra safety. Please have a look at RS Stock Number - 250-892

Differences between sleeve bearings and ball bearings

Sleeve bearing axial fans are generally quieter at low speeds than conventional ball bearing fans. Sleeve bearings are more commonly used in applications which generate a lower heat. They are also designed to be a more cost effective way of cooling.

Approvals

UL; CSA

Specifications
Attribute Value
Supply Voltage 24 V dc
Dimensions 60 x 60 x 25mm
AC or DC Operation DC
Height 60mm
Power Consumption 2.1W
Width 60mm
Maximum Current 88mA
Depth 25.4mm
Air Flow 40m³/h
Noise Level 35dB(A)
Fan Speed 5100rpm
Bearing Type Sleeve
328 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 109.49
units
Per unit
1 - 4
MYR109.49
5 - 9
MYR109.09
10 - 24
MYR106.95
25 - 49
MYR101.49
50 +
MYR96.12
