- RS Stock No.:
- 791-2837
- Mfr. Part No.:
- A9A26927
- Manufacturer:
- Schneider Electric
Temporarily out of stock - back order for despatch 08/05/2024, delivery within 4 working days from despatch date
Price Each
Was MYR339.00
You pay
MYR266.35
units | Per Unit |
1 + | MYR266.35 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 791-2837
- Mfr. Part No.:
- A9A26927
- Manufacturer:
- Schneider Electric
Legislation and Compliance
Product Details

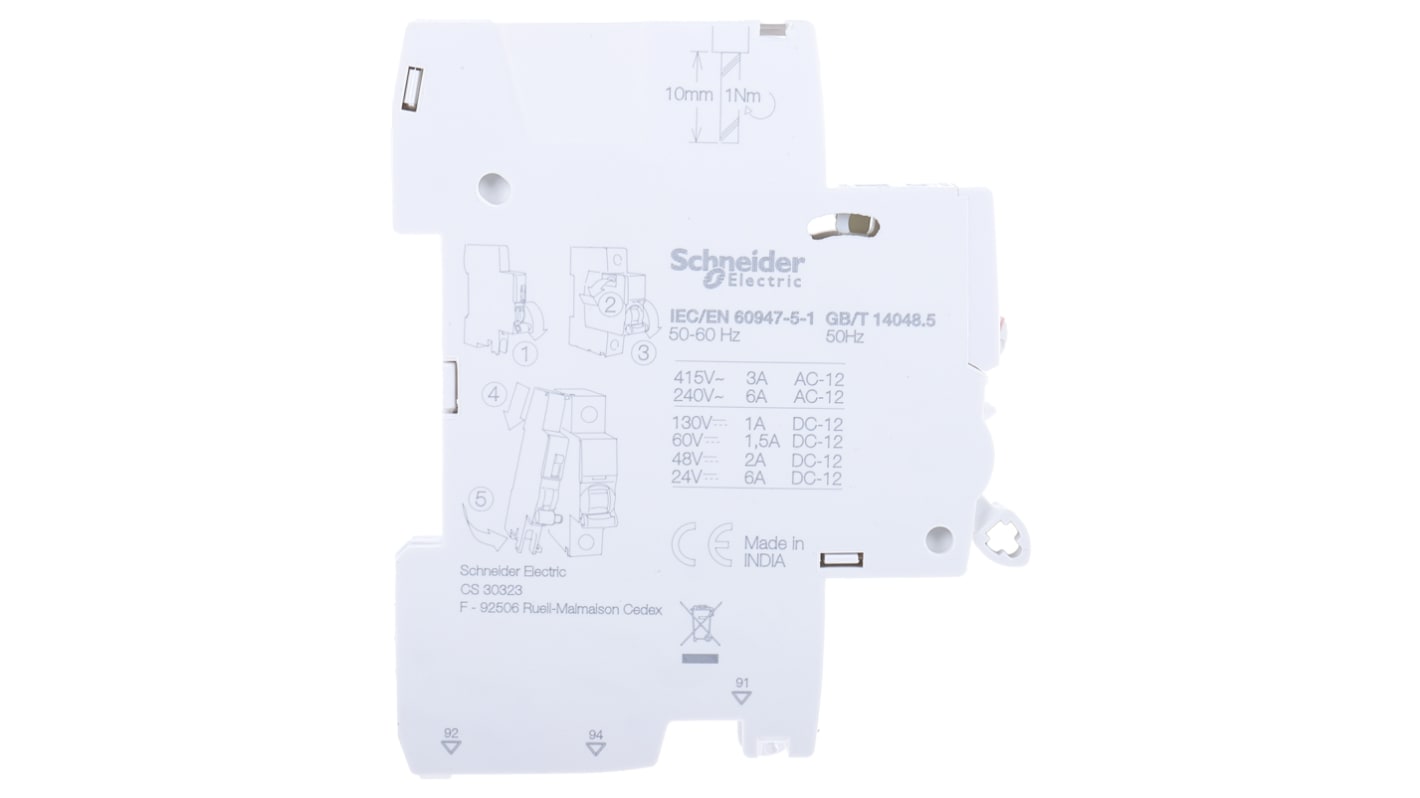

Acti9 Auxiliaries
The electrical auxiliaries are combined with iC60 circuit breakers, iID residual current circuit breakers, remote tripping switch disconnector iSW-NA , RCA remote controls and ARA automatic reclosers; they enable tripping or remote indication of their position (open/closed/tripped) upon a fault
Features and benefits:
Low consumption on your control circuit.
Compact, lightweight and easily attached to compatible contactors. Clip-on, DIN rail mountable (see datasheet for specifics).
18-month manufacturer warranty with Schneider Electric.
Schneider Green Premium product - easily recyclable and disposed of. Built with sustainability in mind to have the least impact on the environment where possible. Toxic Heavy Metal-free. Mercury free.
Protection ratings & Safety features:
IP20 conforming to EN/IEC 60947-5-1
Compact, lightweight and easily attached to compatible contactors. Clip-on, DIN rail mountable (see datasheet for specifics).
18-month manufacturer warranty with Schneider Electric.
Schneider Green Premium product - easily recyclable and disposed of. Built with sustainability in mind to have the least impact on the environment where possible. Toxic Heavy Metal-free. Mercury free.
Protection ratings & Safety features:
IP20 conforming to EN/IEC 60947-5-1
Tripping auxiliaries:
iMN: undervoltage release
iMNs: delayed undervoltage release
iMNx: undervoltage release, independant from supply voltage
iMX: shunt release
iMX+OF: shunt release with open/close contact.
iMNs: delayed undervoltage release
iMNx: undervoltage release, independant from supply voltage
iMX: shunt release
iMX+OF: shunt release with open/close contact.
Indication auxiliaries:
iMN: undervoltage release
iMNs: delayed undervoltage release
iMNx: undervoltage release, independant from supply voltage
iMX: shunt release
iMX+OF: shunt release with open/close contact.
iMNs: delayed undervoltage release
iMNx: undervoltage release, independant from supply voltage
iMX: shunt release
iMX+OF: shunt release with open/close contact.
Indication auxiliaries:
Motor starters/Control systems.
Switching contactors/relay coils.
Control/Signalling equipment.
How do Auxiliary Contacts work?
iOF: open/close contact
iSD: fault indicating contact
iOF/SD+OF: open/close contact and switchable OF or SD contact.
iSD: fault indicating contact
iOF/SD+OF: open/close contact and switchable OF or SD contact.
Specifications
Attribute | Value |
---|---|
Number of Contacts | 1 |
Normal State Configuration | NO/NC |
Mounting Style | DIN Rail Mount |
Range | Acti 9 |
Series | iSD |
Contact Current Rating | 2 A dc, 6 A ac |
Terminal Type | Screw |
Pole and Throw Configuration | DP |
Contact Voltage Rating | 24 → 130 V dc, 240 → 415 V ac |
Better World Product | Yes |
Minimum Operating Temperature | -35°C |
Maximum Operating Temperature | +70°C |
Better World Verification | Green Premium |
Operating Temperature Range | -35 → +70 °C |
