- RS Stock No.:
- 513-0213
- Mfr. Part No.:
- 277949 DILM150-XHI31
- Manufacturer:
- Eaton
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
45 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR112.17
You pay
MYR103.52
Units | Per Unit |
1 - 5 | MYR103.52 |
6 + | MYR101.43 |
- RS Stock No.:
- 513-0213
- Mfr. Part No.:
- 277949 DILM150-XHI31
- Manufacturer:
- Eaton
Legislation and Compliance
Product Details

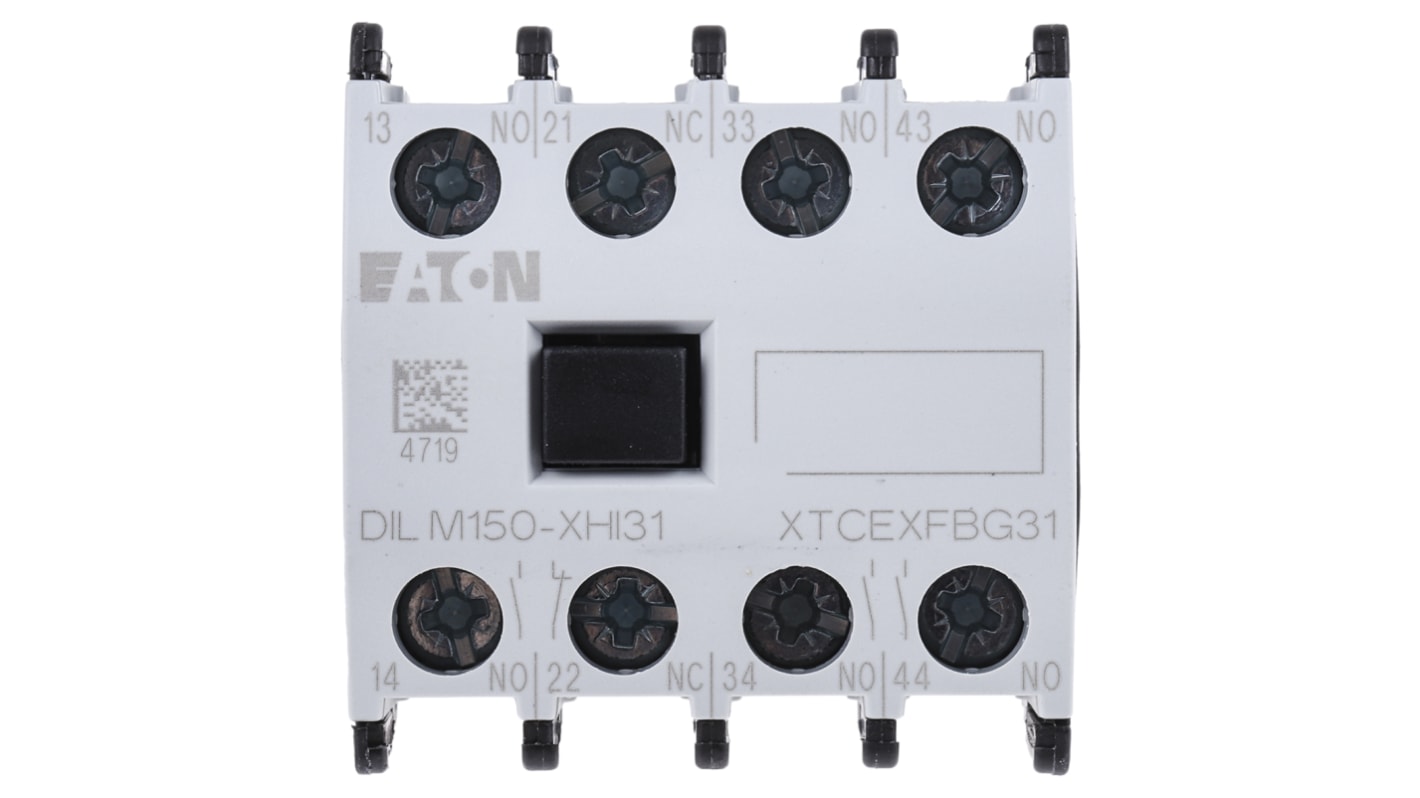

Eaton Auxiliary Contact, 500V AC Voltage Rating, 18 to 14AWG - DILM Series - 277949 DILM150-XHI31
This auxiliary contact from Eaton sends a signal to your controller to let it know when a contactor switches, giving you convenient circuit monitoring. As the device works with Eaton's DILM contactors (such as 631-9899), it's widely compatible with standard switching equipment. The unit's 4 poles monitor 4 circuits at once, so you can be sure of efficient system coverage. As it mounts directly onto your contactor's front plate, the block is quick and easy to install. You can use auxiliary contacts like this one with electric motor starters and commercial lighting systems.
Features & Benefits
• Screw terminals achieve secure electrical connections that protect against jostling
• Low power loss of 3.7W for energy-efficient signalling
• IP20 rating indicates protection against objects over 12mm, including fingers
• Broad operating temperature range between -25°C and +60°C for use in tough industrial conditions
• Low power loss of 3.7W for energy-efficient signalling
• IP20 rating indicates protection against objects over 12mm, including fingers
• Broad operating temperature range between -25°C and +60°C for use in tough industrial conditions
What's the lifespan of this auxiliary contact?
This block has a service life of around 1.3 million operations, so you can be sure of long-lasting performance.
What voltage supplies can I use this product with?
You can use this unit with both AC and DC inputs, for versatility.
Note
Eaton formerly known as Moeller
Specifications
Attribute | Value |
---|---|
Number of Contacts | 4 |
Normal State Configuration | 3NO/NC |
Mounting Style | Front Mount |
Series | Eaton Moeller |
Contact Current Rating | 4 A ac, 10 A dc |
Terminal Type | Screw |
Pole and Throw Configuration | 4PST |
Contact Voltage Rating | 220 V dc, 500 V ac |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +60°C |
Operating Temperature Range | -20 → +60 °C |
