Eaton Auxiliary Contact, 4 Contact, 2NC + 2NO, Front Mount
- RS Stock No.:
- 493-0652
- Mfr. Part No.:
- 277377 DILM32-XHI22
- Manufacturer:
- Eaton
13 In Local stock for delivery in 2-3 working days, delivery time may vary for certain locations or FTZ
16 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR108.47
You pay
MYR103.05
| Units | Per Unit |
| 1 - 4 | MYR103.05 |
| 5 + | MYR84.82 |
- RS Stock No.:
- 493-0652
- Mfr. Part No.:
- 277377 DILM32-XHI22
- Manufacturer:
- Eaton
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- RO
Product Details

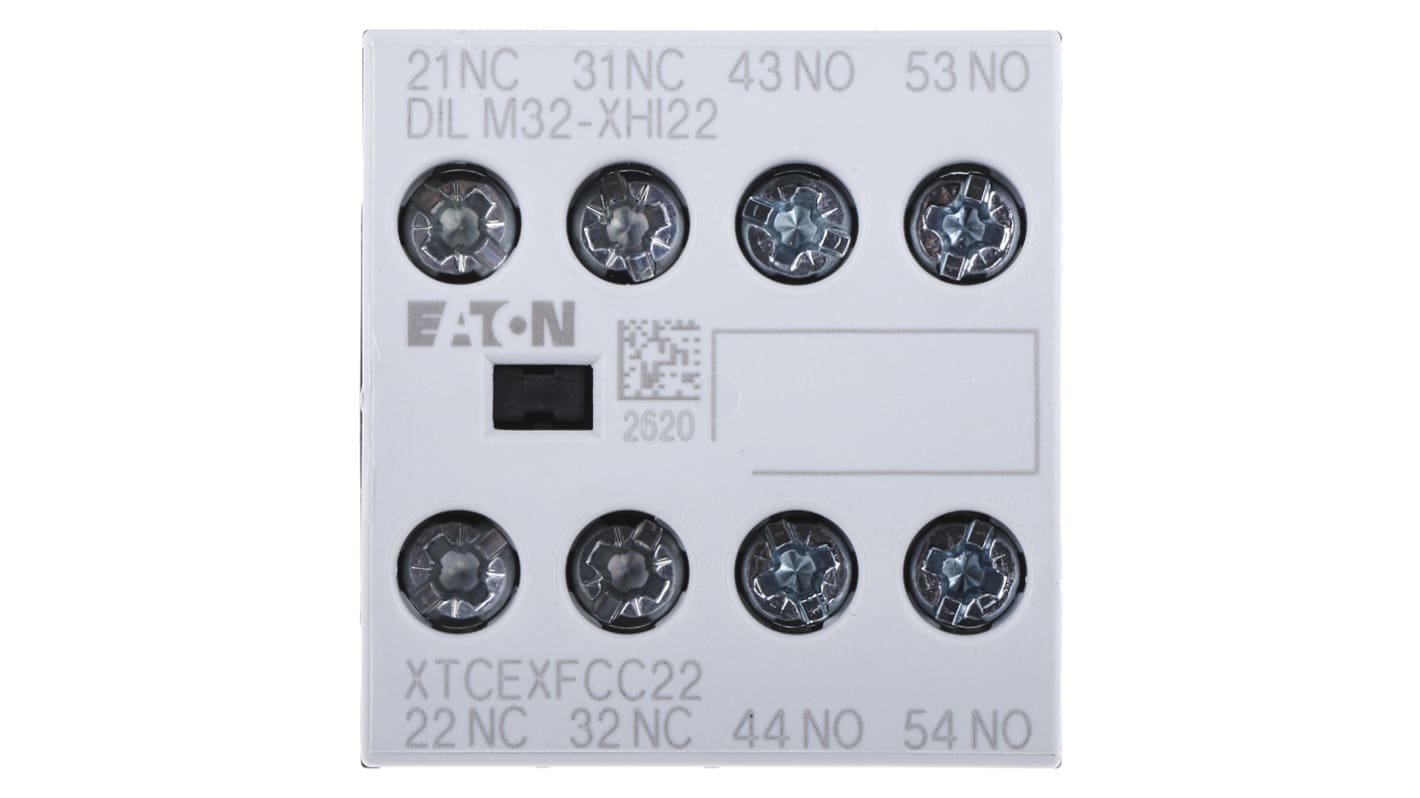

Eaton Auxiliary Contact, 4 Poles, Front Mounting Style - 277377 DILM32-XHI22
Snap your machinery into action with this auxiliary contact from Eaton. It switches along with an attached component to send on and off signals to linked hardware, keeping your processes running smoothly. Interlocked contacts mean the device's circuits open and close together every time to stop your equipment from getting mixed messages. Fitting the unit to a contactor (such as 250-9407) is a breeze thanks to simple tool-free mounting. Screw-clamp terminals are on hand to hold conductors tight, even if there's disruptive movement. Look for auxiliary contacts like this one in motor starters and power distribution systems.
Applications
• Impulse withstand voltage of 6,000V AC keeps it working through surges
• IP20 rating indicates protection from objects, such as tools and wires, up to 12mm
• Low total power loss of 2.6W for energy-efficient signalling
• Accepts wires sized between 0.75 and 2.5mm², giving you flexible connectivity
• Wide operating temperature range of -25°C to +60°C means it stands up to intense conditions
• IP20 rating indicates protection from objects, such as tools and wires, up to 12mm
• Low total power loss of 2.6W for energy-efficient signalling
• Accepts wires sized between 0.75 and 2.5mm², giving you flexible connectivity
• Wide operating temperature range of -25°C to +60°C means it stands up to intense conditions
What's the service life of this auxiliary contact?
This unit has a lifespan of 1.3 million cycles, so it's a cert to provide long-lasting appliance control.
Note
Eaton formerly known as Moeller
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 4 |
| Normal State Configuration | 2NO/2NC |
| Mounting Style | Front Mount |
| Series | Eaton Moeller |
| Contact Current Rating | 4 A ac, 10 A dc |
| Terminal Type | Screw |
| Pole and Throw Configuration | 4PST |
| Contact Voltage Rating | 220 V dc, 500 V ac |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
| Operating Temperature Range | -25 → +60 °C |
