- RS Stock No.:
- 395-0172
- Mfr. Part No.:
- GVAD0110
- Manufacturer:
- Schneider Electric
Stock check temporarily unavailable - call for stock availability
Added
Price Each
MYR143.30
Units | Per Unit |
1 + | MYR143.30 |
- RS Stock No.:
- 395-0172
- Mfr. Part No.:
- GVAD0110
- Manufacturer:
- Schneider Electric
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
Auxiliary Contacts GV2
Are you looking to add an additional auxiliary contact to your control circuit, to provide further safety? Schneider Electric offers the latest in Auxiliary Contact components and technology.
Specifically, the GV3 TeSys series of Auxiliary Contactor brings reliability to your circuit by acting as a secondary switching device working in conjunction with other primary devices such as contactors, relays or circuit breakers.
Specifically, the GV3 TeSys series of Auxiliary Contactor brings reliability to your circuit by acting as a secondary switching device working in conjunction with other primary devices such as contactors, relays or circuit breakers.
Features and benefits:
Standard versions operate when the starter unit is switched ON or OFF
Fault version will operate when the starter unit is subject to an overload or short-circuit
Fault version will operate when the starter unit is subject to an overload or short-circuit
Applications:
Noise sensitive areas.
Programmable controller outputs.
Other simple control systems.
Programmable controller outputs.
Other simple control systems.
How do Auxiliary Contacts work?
An Auxiliary Contact is an electromechanical device that is mounted typically to contactors. They are physically connected to the contactor, with simultaneous activation and deactivation applying to both of the devices at the same time.
Aux Contacts can be installed onto contactors either by front mounting, or side mounting. This is usually clear in the shape and size of the product, but please check the compatibility of your devices. Aux Contacts are really useful devices to aid in keeping an eye on the contactor.
You can, for example, hook up a low voltage LED directly to the Aux Contactor without having to worry about the overall voltage of the contactor it is linked to (as long the Aux Contactor is electrically isolated from the contactor) you could use the LED to monitor the device i.e. indicate if the motor is off/on.

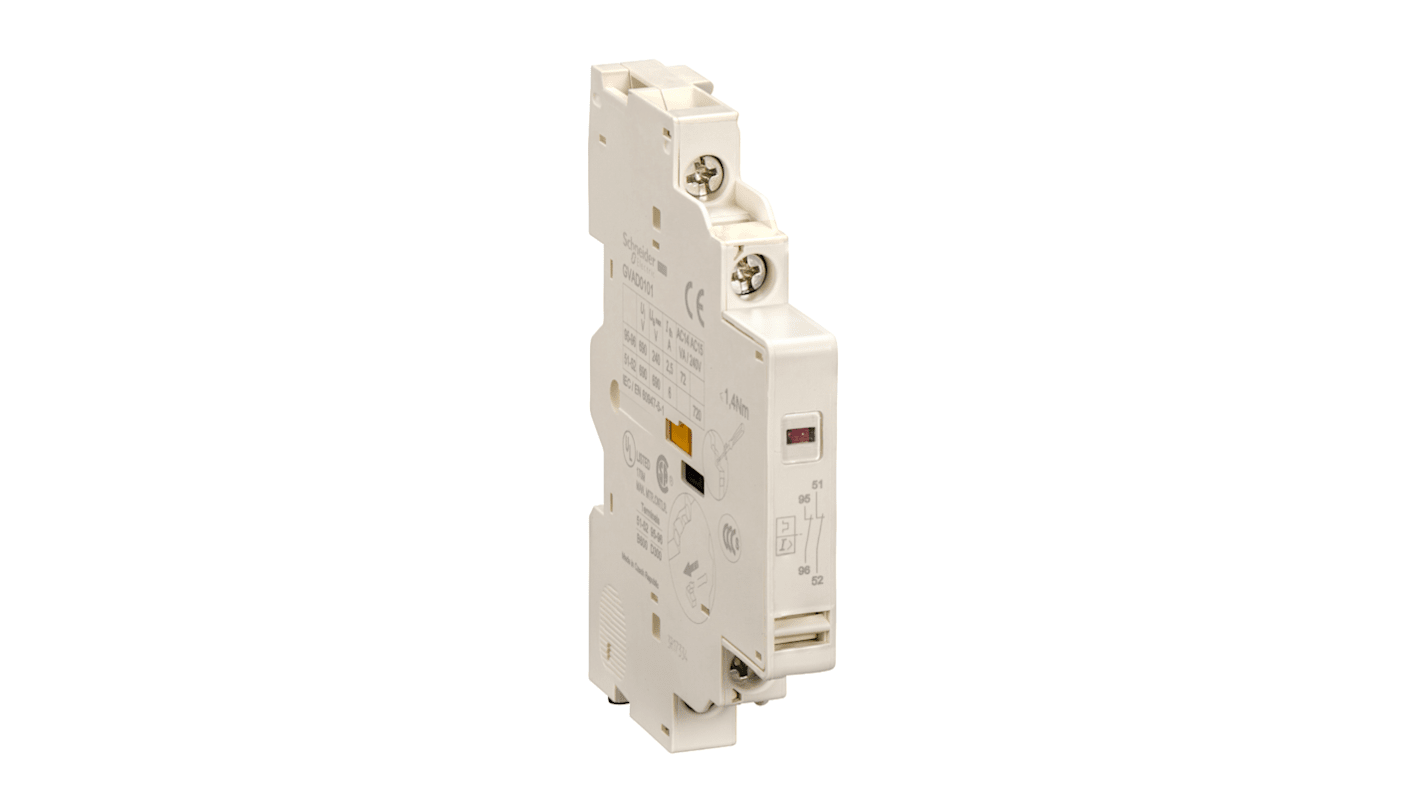

Schneider Electric GVAD Auxiliary Contact, Side Mount, DP Pole And Throw Configuration - GVAD0110
This auxiliary contact by Schneider Electric is designed to provide reliable performance in various electrical applications. The contact features a side mount design with a DP pole and throw configuration, making it suitable for a wide range of use cases.
Features & Benefits
• Side mount design for easy installation in different setups
• DP pole and throw configuration for enhanced functionality
• Screw terminal type for secure connections
• 1NC + 1NO normal state configuration for versatile use
• Green Premium verification for eco-friendly operation
• DP pole and throw configuration for enhanced functionality
• Screw terminal type for secure connections
• 1NC + 1NO normal state configuration for versatile use
• Green Premium verification for eco-friendly operation
Applications
• Suitable for fault signaling in electrical circuits
• Can be integrated into control panels for enhanced performance
• Can be integrated into control panels for enhanced performance
Can it be used in high voltage applications?
The auxiliary contact is suitable for use in high voltage scenarios, offering reliable performance in demanding electrical setups.
Will it work with different series of TeSys devices?
Yes, the auxiliary contact is compatible with various TeSys series devices, ensuring seamless integration into different setups.
Is it easy to install and configure?
The screw terminal type design of the auxiliary contact makes it easy to install and set up in different electrical systems, providing convenience for users.
Specifications
Attribute | Value |
---|---|
Number of Contacts | 2 |
Normal State Configuration | NO/NC |
Mounting Style | Side Mount |
Series | GVAD |
Terminal Type | Screw |
Pole and Throw Configuration | DP |
Contact Voltage Rating | 240 V dc, 690 V ac |
Better World Product | Yes |
Better World Verification | Green Premium |
