- RS Stock No.:
- 896-1938
- Mfr. Part No.:
- 13519047
- Manufacturer:
- Delphi
- RS Stock No.:
- 896-1938
- Mfr. Part No.:
- 13519047
- Manufacturer:
- Delphi
Technical data sheets
Legislation and Compliance
Product Details

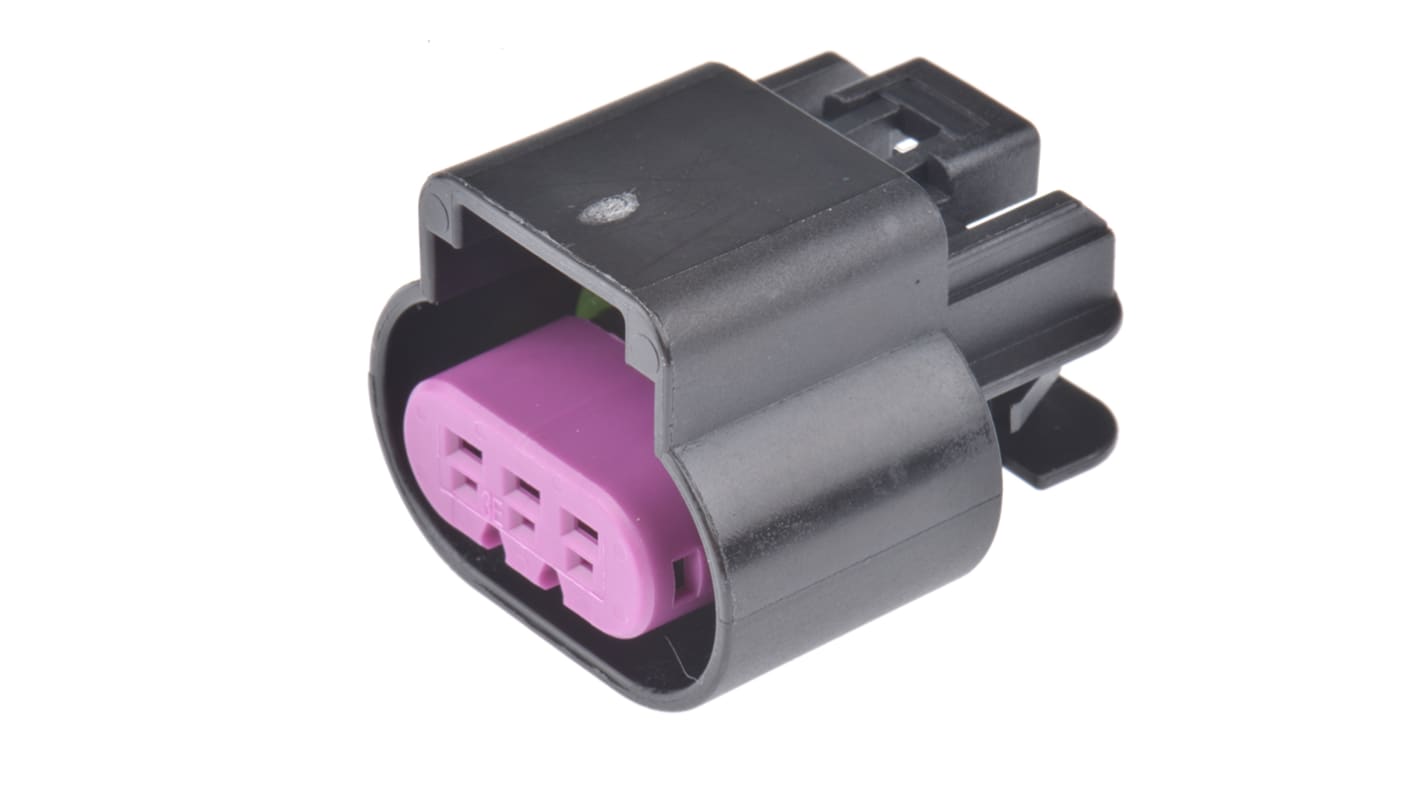

Delphi GT150 Sealed Female Automotive Connectors
The Delphi GT150 series of sealed female automotive connectors have a 1.5mm blade width.These automotive connectors have silver interface platings which pass the SAE ® J2030 Heavy Duty Connector standard.The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -125°C.
Delphi GT150 Series Automotive Connectors
Specifications
Attribute | Value |
---|---|
Number of Contacts | 3 |
Type | Automotive Connector |
Gender | Female |
Number of Rows | 2 |
Current Rating | 15A |
Mounting Type | Cable Mount |
Series | GT 150 |
Colour | Black |
Termination Method | Crimp |
Height | 23.1mm |
Width | 28.2mm |
Housing Material | PBT |
Depth | 29.3mm |
Contact Plating | Tin |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +125°C |
Contact Material | Tin Brass |
