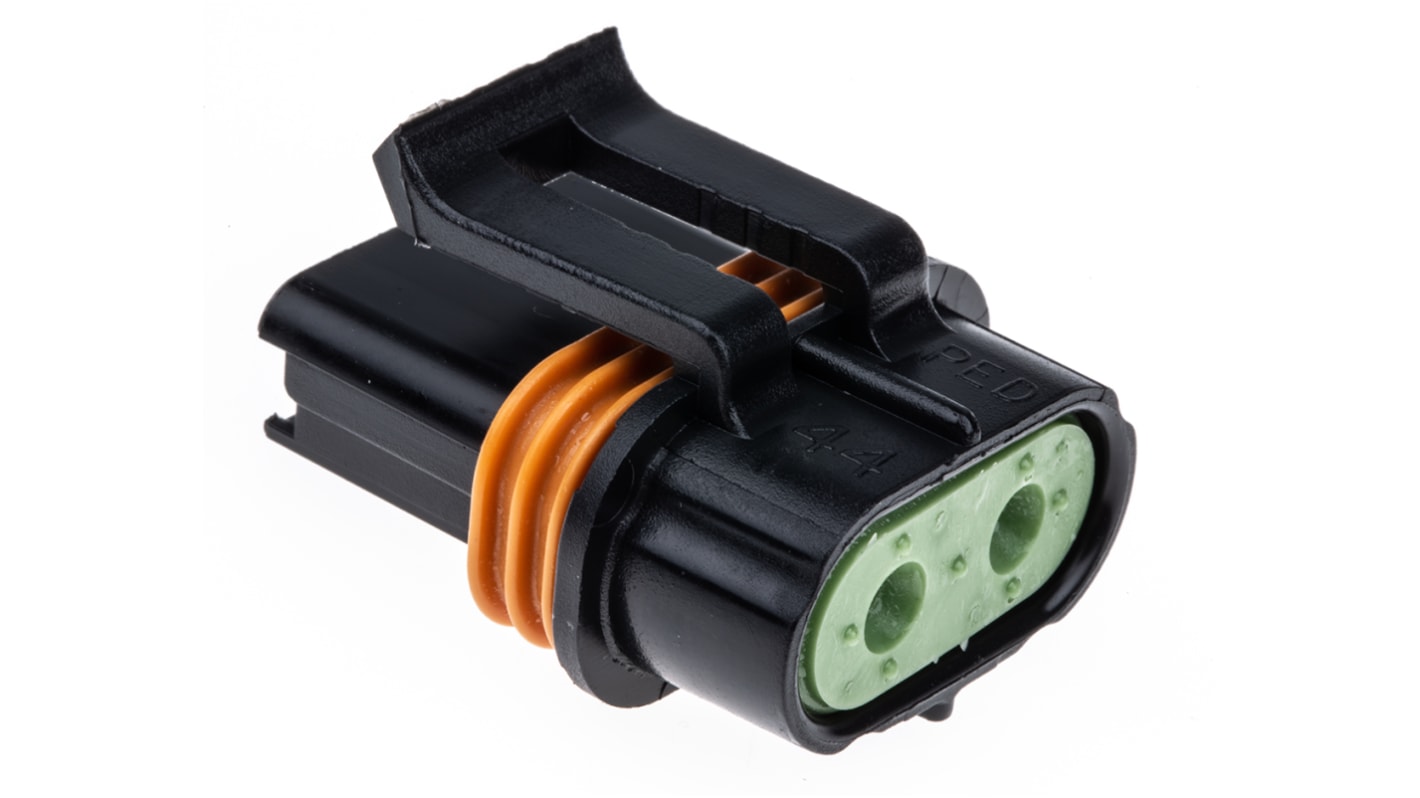

Delphi Metri-Pack 630 Series, 1 Row 2 Way Cable Mount Socket Connector, with Crimp Termination Method

  • RS Stock No. 896-1776
  • Mfr. Part No. 12033769
  • Manufacturer Delphi
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Delphi Metri-Pack 630 Sealed Female Automotive Connectors

From Delphi, a range of robust female housings from the Metri-Pack 630 series. These automotive connectors are designed to exceed requirements for marine, appliance and industrial control applications. Made from a tough PBT housing material, these connectors have an excellent resistance to temperature, chemicals and abrasion. The automotive connector housings can accommodate a cable range of 0.50 – 5.0 mm2 cable and utilise contacts with a 6.3mm blade width.
Contacts and cable seals must be purchased separately. Typical part number 896-1802 for terminals and 896-1925 cable seals.

Delphi Metri-Pack 630 Series Automotive Connectors

Specifications
Attribute Value
Number of Contacts 2
Type Connector
Gender Female
Number of Rows 1
Current Rating 46A
Mounting Type Cable Mount
Series Metri-Pack 630
Colour Black
Termination Method Crimp
Height 20mm
Width 27.3mm
Depth 31.5mm
Housing Material PA 69
Contact Plating Tin
Minimum Operating Temperature -40°C
Contact Material Tin Brass
Maximum Operating Temperature +125°C
612 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 4)
MYR 9.173
units
Per unit
Per Pack*
4 - 36
MYR9.173
MYR36.692
40 - 96
MYR8.713
MYR34.852
100 - 196
MYR8.473
MYR33.892
200 - 396
MYR8.223
MYR32.892
400 +
MYR7.965
MYR31.86
*price indicative
