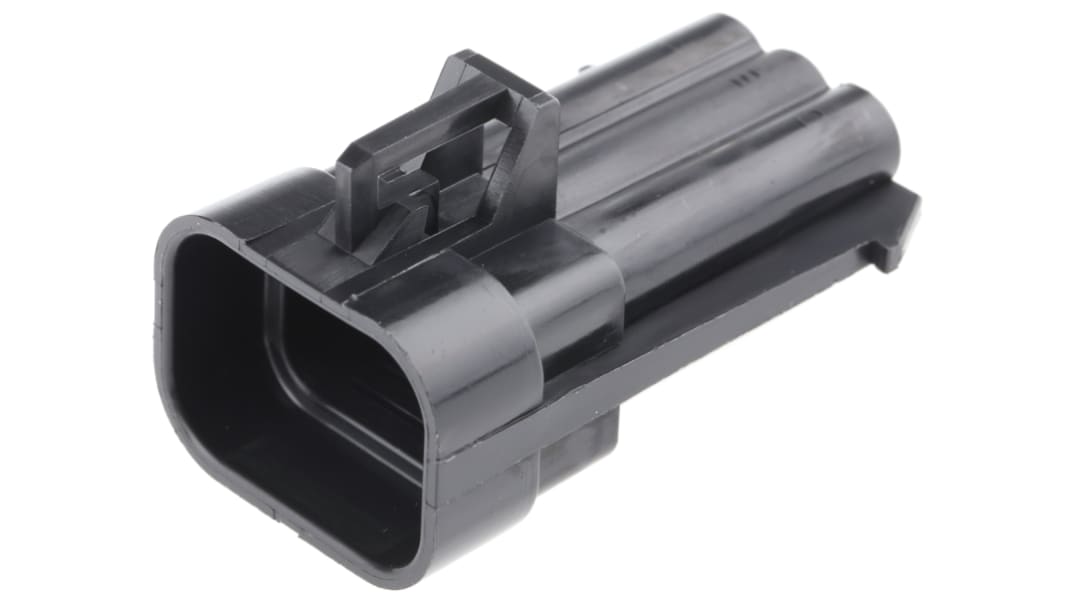

Delphi Metri-Pack 150 Series, 2 Row 6 Way Cable Mount Plug Connector, with Crimp Termination Method

  • RS Stock No. 801-0929
  • Mfr. Part No. 12124107
  • Manufacturer Delphi
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Delphi Metri-Pack 150 Sealed Male Automotive Connectors

Metri-Pack 150 sealed male automotive connectors with triple rib silcone rubber seals for environemntal protection. These Metri-Pack 150 sealed male automotive connectors have a low energy, low voltage capability, a maximum continuous current of 14 A, offer a high resistance to chemicals and abrasion and withstand a wide temperature range of -40 to 125°C. Typical applications for these Metri-Pack 150 automotive connectors include critical low energy electronic underhood vehicle applications where environmental protection is essential. For mating halves and accessories please see table.

Standards

Metri-pack 150 series automotive connectors can meet or exceed the the requirements of most marine, appliance and industrial control applications.

Delphi Metri-Pack 150 Series Automotive Connectors

Specifications
Attribute Value
Type Connector
Number of Contacts 6
Gender Male
Number of Rows 2
Current Rating 14A
Mounting Type Cable Mount
Series Metri-Pack 150
Colour Black
Termination Method Crimp
Height 28.1mm
Width 29mm
Depth 45.5mm
Housing Material PA
Maximum Operating Temperature +125°C
Minimum Operating Temperature -40°C
763 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 5.03
units
Per unit
1 - 9
MYR5.03
10 - 24
MYR4.80
25 - 99
MYR4.66
100 - 249
MYR4.52
250 +
MYR4.39
