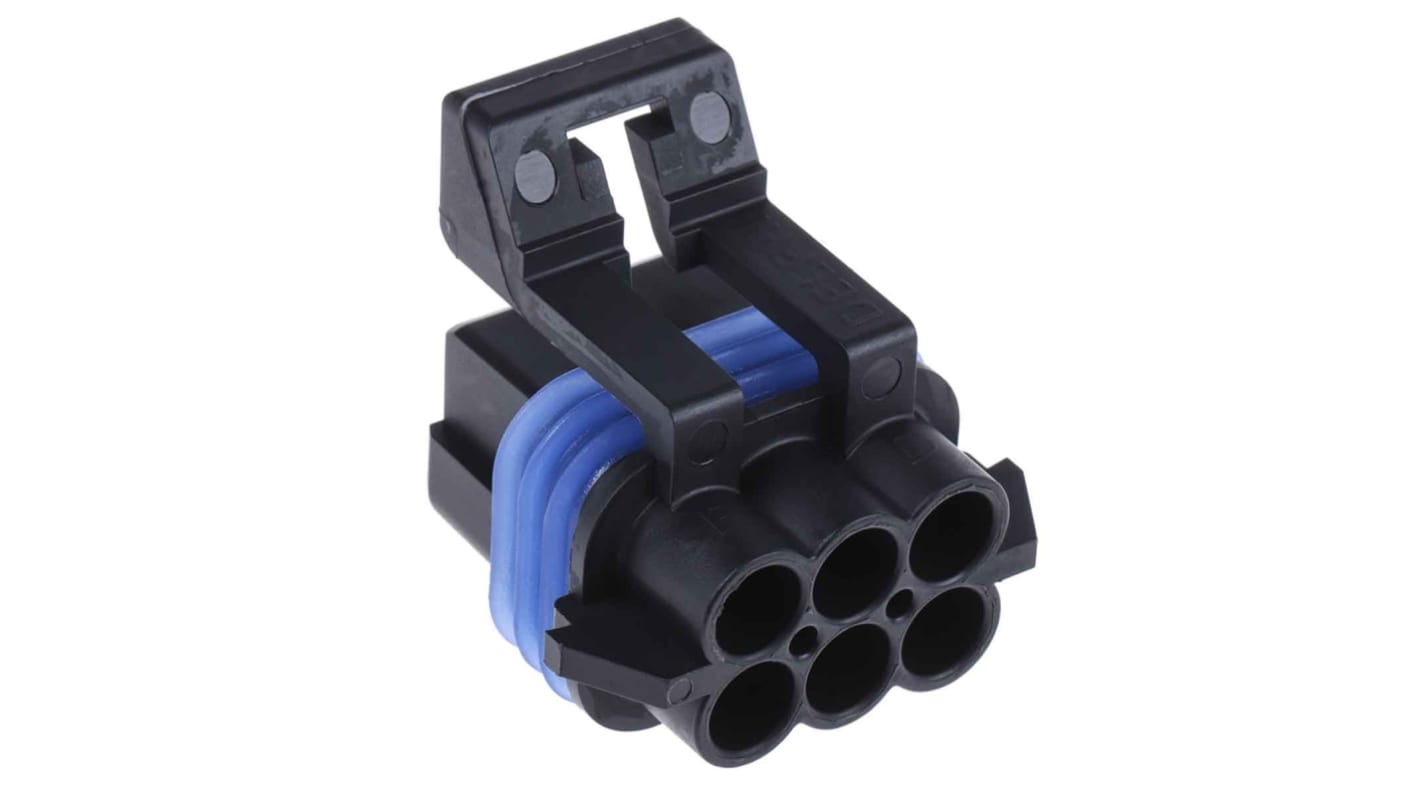

Delphi Metri-Pack 150 Series, 2 Row 6 Way Cable Mount Socket Connector, with Crimp Termination Method

  • RS Stock No. 801-0926
  • Mfr. Part No. 12052848
  • Manufacturer Delphi
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Delphi Metri-Pack 150 Sealed Female Automotive Connectors

Metri-Pack 150 sealed female automotive connectors with triple rib silcone rubber seals for environemntal protection. These Metri-Pack 150 sealed female automotive connectors have a low energy, low voltage capability, a maximum continuous current of 14 A, offer a high resistance to chemicals and abrasion and withstand a wide temperature range of -40 to 125°C. Typical applications for these Metri-Pack 150 automotive connectors include critical low energy electronic underhood vehicle applications where environmental protection is essential. For mating halves and accessories please see table.

Standards

Metri-pack 150 series automotive connectors can meet or exceed the the requirements of most marine, appliance and industrial control applications.

Delphi Metri-Pack 150 Series Automotive Connectors

Specifications
Attribute Value
Number of Contacts 6
Type Connector
Gender Female
Number of Rows 2
Current Rating 14A
Mounting Type Cable Mount
Series Metri-Pack 150
Colour Black
Termination Method Crimp
Height 28.7mm
Width 29mm
Depth 27.4mm
Minimum Operating Temperature -40°C
Housing Material PA
Maximum Operating Temperature +125°C
713 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 8.92
units
Per unit
1 - 9
MYR8.92
10 - 24
MYR8.48
25 - 99
MYR8.21
100 - 249
MYR7.99
250 +
MYR7.73
