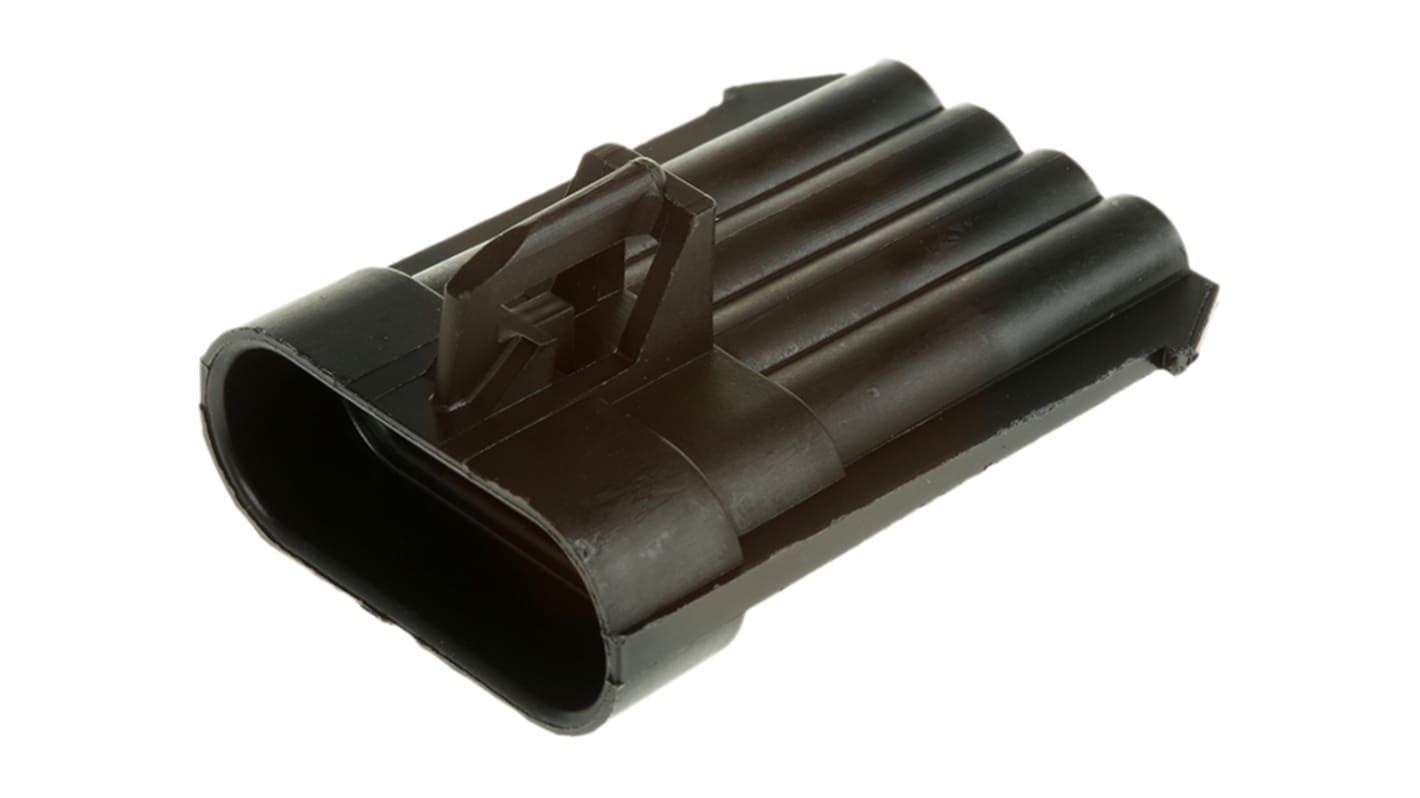

Delphi Metri-Pack 150 Series, 1 Row 4 Way Cable Mount Plug Connector, with Crimp Termination Method

  • RS Stock No. 801-0913
  • Mfr. Part No. 12162102
  • Manufacturer Delphi
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Delphi Metri-Pack 150 Sealed Male Automotive Connectors

Metri-Pack 150 sealed male automotive connectors with triple rib silcone rubber seals for environemntal protection. These Metri-Pack 150 sealed male automotive connectors have a low energy, low voltage capability, a maximum continuous current of 14 A, offer a high resistance to chemicals and abrasion and withstand a wide temperature range of -40 to 125°C. Typical applications for these Metri-Pack 150 automotive connectors include critical low energy electronic underhood vehicle applications where environmental protection is essential. For mating halves and accessories please see table.

Standards

Metri-pack 150 series automotive connectors can meet or exceed the the requirements of most marine, appliance and industrial control applications.

Delphi Metri-Pack 150 Series Automotive Connectors

Specifications
Attribute Value
Number of Contacts 4
Type Connector
Gender Male
Number of Rows 1
Current Rating 14A
Mounting Type Cable Mount
Series Metri-Pack 150
Colour Black
Termination Method Crimp
Height 22.2mm
Width 34.6mm
Depth 45.5mm
Housing Material PBT
Maximum Operating Temperature +125°C
Minimum Operating Temperature -40°C
