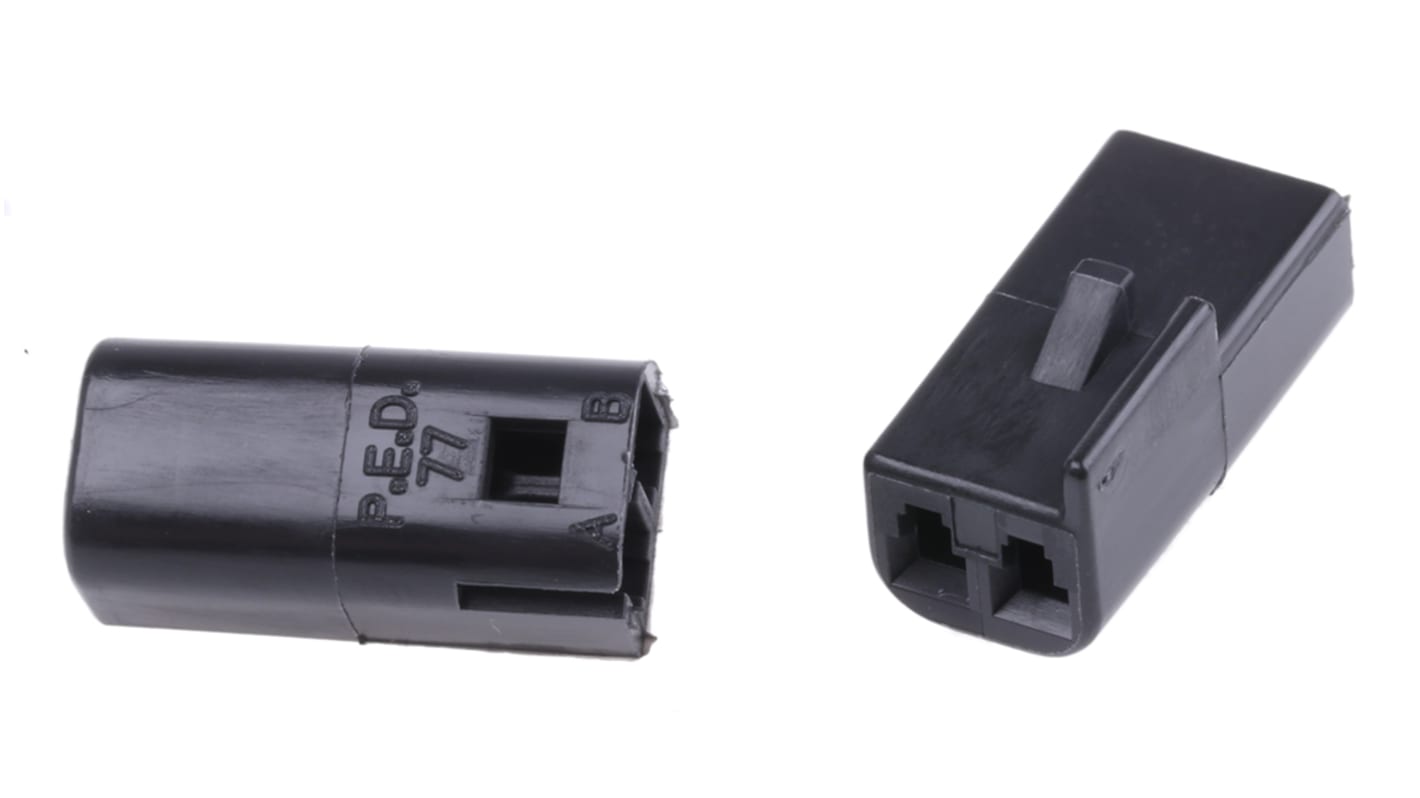

Delphi Metri-Pack 150 Series, 1 Row 2 Way Cable Mount Socket Connector, with Crimp Termination Method

  • RS Stock No. 801-0838
  • Mfr. Part No. 12047662
  • Manufacturer Delphi
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Delphi Metri-Pack 150 Unsealed Female Automotive Connectors

Metri-Pack 150 unsealed female automotive connectors with a low energy, low voltage capability and a maximum continuous current of 14 A. These Metri-Pack 150 unsealed female automotive connectors offer a high resistance to chemicals and abrasion and withstand a wide temperature range of -40 to 125°C. Typical applications for these Metri-Pack 150 automotive connectors include limited space applications that do not require environmental protection. For mating halves and accessories please see table.

Additional Data
Stock Number Manufacturer Part Number Mating Connector Secondary Lock (TPA) Crimp Terminals
801-0831 12047682 801-0834   801-0872, 801-0881
801-0838 12047662 801-0847 801-0840 801-0872, 801-0881
801-0853 12064762 801-0856 801-0850 801-0872, 801-0881
801-0862 12064769 801-0866 801-0878 801-0872, 801-0881

Standards

Metri-Pack 150 series automotive connectors can meet or exceed the the requirements of most marine, appliance and industrial control applications.

Delphi Metri-Pack 150 Series Automotive Connectors

Specifications
Attribute Value
Number of Contacts 2
Type Connector
Gender Female
Number of Rows 1
Current Rating 14A
Mounting Type Cable Mount
Series Metri-Pack 150
Colour Black
Termination Method Crimp
Height 8.7mm
Width 8.3mm
Depth 17mm
Maximum Operating Temperature +125°C
Minimum Operating Temperature -40°C
Housing Material PA
11930 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
MYR 1.785
units
Per unit
Per Pack*
10 - 90
MYR1.785
MYR17.85
100 - 240
MYR1.695
MYR16.95
250 - 990
MYR1.65
MYR16.50
1000 - 2490
MYR1.599
MYR15.99
2500 +
MYR1.549
MYR15.49
*price indicative
