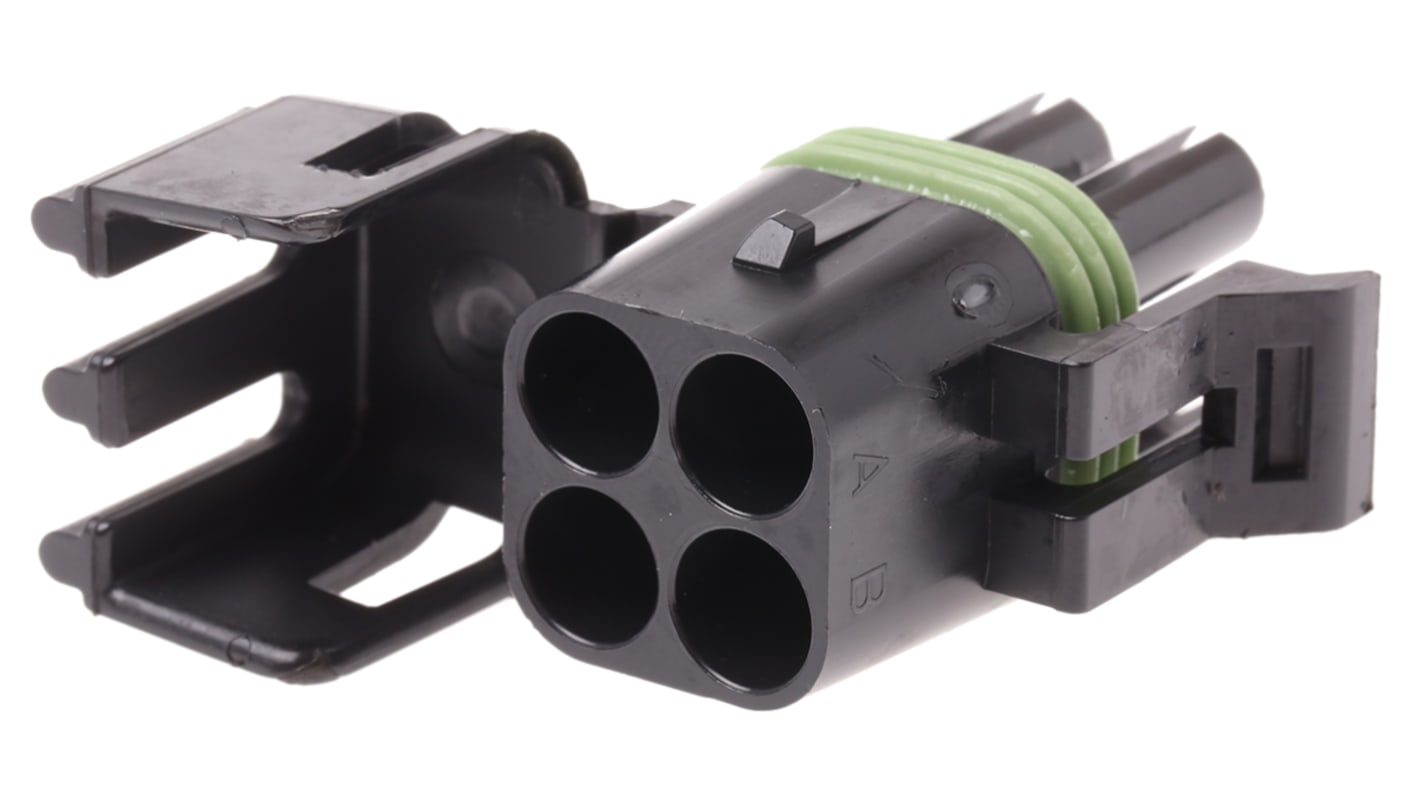

Delphi Weather-Pack Series, 2 Row 4 Way Cable Mount Socket Connector, with Crimp Termination Method

  • RS Stock No. 801-0780
  • Mfr. Part No. 12015798
  • Manufacturer Delphi
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Delphi Weather-Pack Sealed Female Automotive Connector Assemblies

Weather-Pack sealed female automotive connector assemblies with triple ribbed silicone connector and cavity seals designed to withstand extreme temperatures, chemicals and fluids. The terminals of these Weather-Pack automotive connectors are tin plated and have special core wings that allow crimp only connections so solder is not needed, the dual tangs on the terminals help prevent backing out. These Weather-Pack automotive connectors have positive locking indexing to prevent mismating.
Typical applications for these Weather Pack sealed automotive connectors are low energy, low voltage automotive applications in harsh environments such as commercial vehicle and marine applications.
For mating connectors, crimp terminals and cable seals please see table.

Delphi Weather-Pack Series Automotive Connectors

Specifications
Attribute Value
Number of Contacts 4
Type Connector
Gender Female
Number of Rows 2
Current Rating 20A
Mounting Type Cable Mount
Series Weather-Pack
Colour Black
Termination Method Crimp
Height 28.5mm
Width 21.7mm
Depth 40.3mm
Housing Material PA
Minimum Operating Temperature -40°C
Maximum Operating Temperature +125°C
