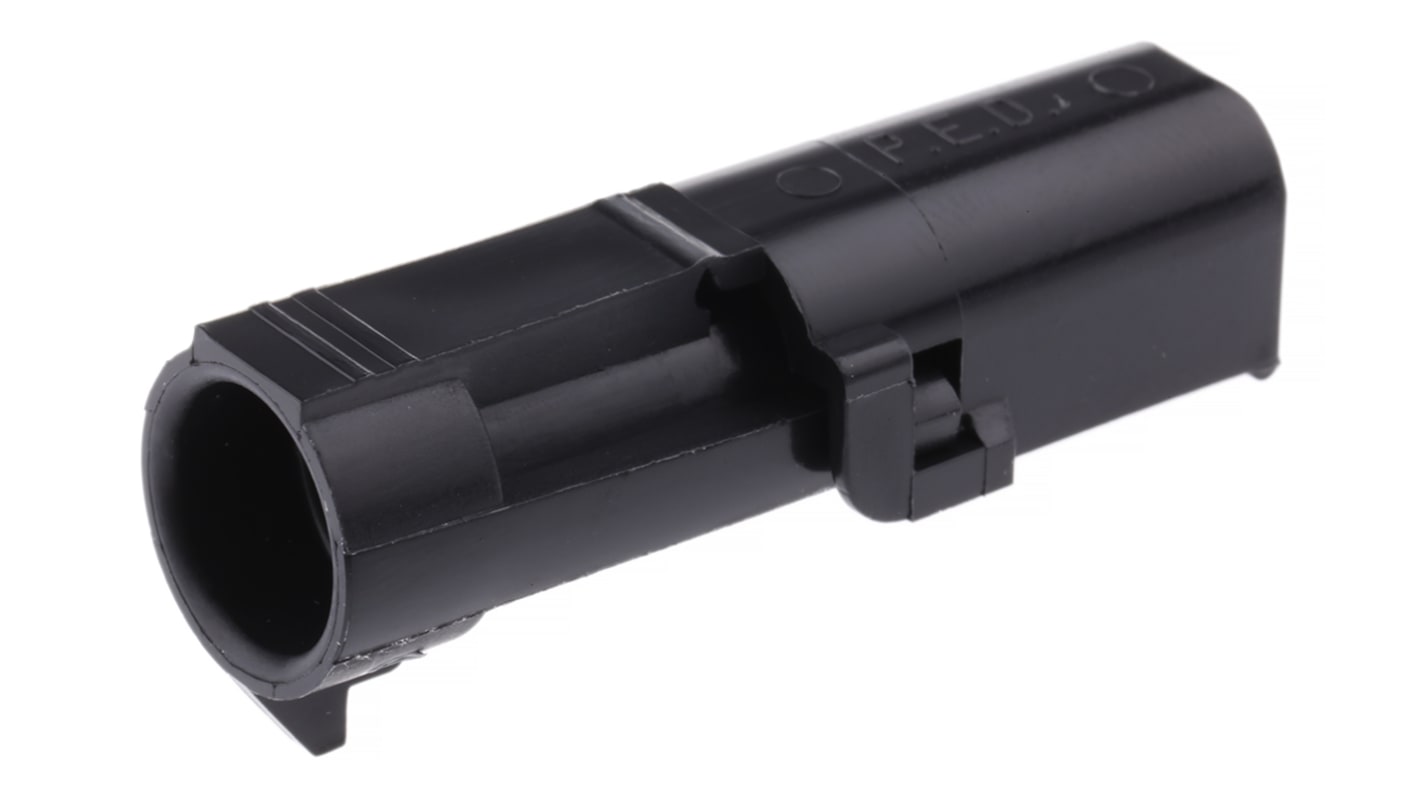

Delphi Weather-Pack Series, 1 Row 1 Way Cable Mount Plug Connector, with Crimp Termination Method

  • RS Stock No. 801-0749
  • Mfr. Part No. 12010996
  • Manufacturer Delphi
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Delphi Weather-Pack Sealed Male Automotive Connector Assemblies

Weather-Pack sealed male automotive connector assemblies with triple ribbed silicone connector and cavity seals designed to withstand extreme temperatures, chemicals and fluids. The terminals of these Weather-Pack automotive connectors are tin plated and have special core wings that allow crimp only connections so solder is not needed, the dual tangs on the terminals help prevent backing out. These Weather-Pack automotive connectors have positive locking indexing to prevent mismating along with secondary lock and Connector Position Assurance (CPA)
Typical applications for these Weather Pack sealed automotive connectors are low energy, low voltage automotive applications in harsh environments such as commercial vehicle and marine applications.
For mating connectors, crimp terminals and cable seals please see table.

Additional Data
Stock Number Manufacturer Part Number Mating Connector Secondary Lock (CPA) Crimp Terminals Seals
801-0749 12010996 801-0743   801-0806, 8010793 801-0825, 801-0812, 801-0816, 801-0800, 801-0819
801-0755 12010973 801-0752   801-0806, 8010793 801-0825, 801-0812, 801-0816, 801-0800, 801-0819
801-0774 12020827 801-0765 801-1070 801-0806, 8010793 801-0825, 801-0812, 801-0816, 801-0800, 801-0819
801-0768 12010717 801-0759   801-0806, 8010793 801-0825, 801-0812, 801-0816, 801-0800, 801-0819
801-0783 12015024 801-0780   801-0806, 8010793 801-0825, 801-0812, 801-0816, 801-0800, 801-0819
801-0771 12020830 801-0777 801-1070 801-0806, 8010793 801-0825, 801-0812, 801-0816, 801-0800, 801-0819
801-0787 12010975 801-0796   801-0806, 8010793 801-0825, 801-0812, 801-0816, 801-0800, 801-0819
896-1635 12034074
896-1644 12015384
896-1650 12020403
896-1653 12034342
896-1657 12065158

Delphi Weather-Pack Series Automotive Connectors

Specifications
Attribute Value
Number of Contacts 1
Type Connector
Gender Male
Number of Rows 1
Current Rating 20A
Mounting Type Cable Mount
Series Weather-Pack
Colour Black
Termination Method Crimp
Height 17.3mm
Width 16.5mm
Depth 47.6mm
Maximum Operating Temperature +125°C
Minimum Operating Temperature -40°C
Housing Material PA
3669 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 2.66
units
Per unit
1 - 9
MYR2.66
10 - 24
MYR2.55
25 - 99
MYR2.45
100 - 249
MYR2.38
250 +
MYR2.29
