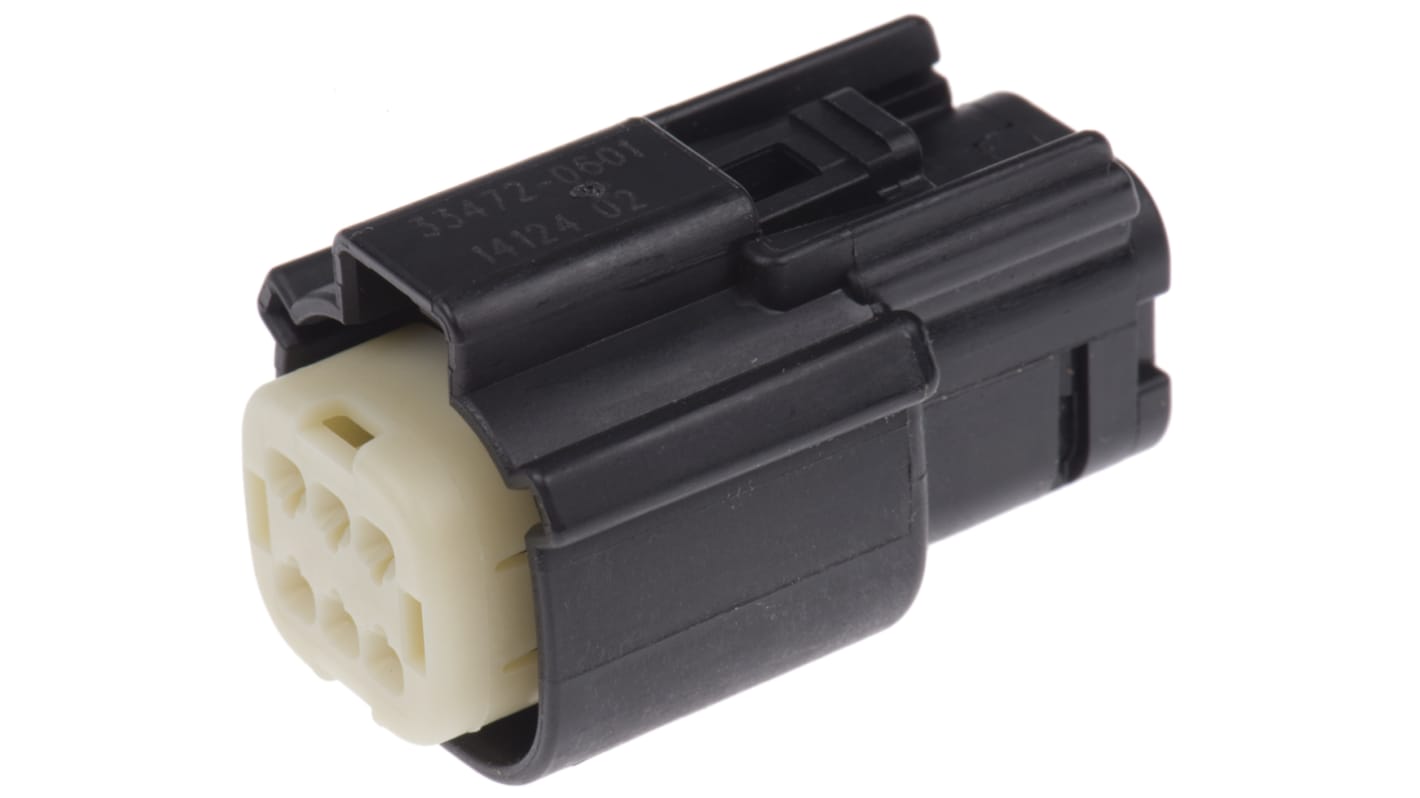

Molex MX150 Series, 33472 Series Number, 2 Row 6 Way IP67 Cable Mount Socket Connector, with Crimp Termination Method

  • RS Stock No. 797-6579
  • Mfr. Part No. 33472-0601
  • Manufacturer Molex
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Molex MX150 3.50 mm Sealed Automotive Receptacle and Blade Connectors - 33472 and 33482 Series

MX150 high performance sealed automotive receptacle and blade connectors that meet USCAR-2 Class 3 requirements. Meeting this requirement means that these connectors can be used in on-engine, high vibration, under-hood and under chassis environments at class 3 temperatures. These MX150 automotive connectors have a compact housing design and are based on the 1.50 mm ISO blade type terminal system. This terminal system has a low insertion force and offers a high performance connection for mid power applications. The connector seals are designed and tested to IEC IP6K7 and IP67K9K and SAE USCAR-2 Rev 4 standards. Meeting this standard means that the connectors exceed waterproof demands as a true sealed connector system tested under submersed conditions in various fluids. The matte-seals of these connectors provide both waterproof protection and strain relief to the wire seal interface. The connector terminals which require purchasing separately are crimped and poked into the connector. These MX150 automotive connectors are supplied pre-assembled and consist of a housing, grommet cap, a primary lock reinforcement, a matte seal and a ring seal (female only). Versions of these connectors are also available with a CPA (Connector Position Assurance) which only locks when the connector is latched.

Features and Benefits

• Meet USCAR-2 Class 3 requirements.
• Waterproof to IEC IP6K7 and IP67K9K and SAE USCAR-2 Rev 4 standards
• Excellent electrical and mechanical performance
• Compact 3.50 mm pitch housing design
• High performance 1.50 mm ISO blade terminal system
• Easy poke-in terminal insertion
• Matte seal for waterproof protection and strain relief
• Polarization to prevent mismating
• Supplied pre-assembled to save time
• Available with CPA (Contact Position Assurance)

Product Application Information

These MX150 automotive connectors are ideal for SAE and ISO style wire and support both signal and power applications for both automotive and non-automotive applications. Applications include commercial vehicles, recreational vehicles, industrial vehicles and equipment, construction equipment and marine equipment

Note

Meets IPx9K when the following configuration is used: With CPA, With Backshell, With Convoluted Conduit

Standards

USCAR-20 (FCLT) / USCAR-2 Rev 4 / USCAR-21
IEC IP6K7and IP6K9K and SAE USCAR-2 Rev 4

Molex MX150™ Sealed Connection Systems

Specifications
Attribute Value
Type Connector
Number of Contacts 6
Gender Female
Number of Rows 2
Current Rating 22A
Mounting Type Cable Mount
Series MX150
Colour Black, Natural
IP Rating IP67
Termination Method Crimp
Height 24.8mm
Width 22.15mm
Depth 36.95mm
Minimum Operating Temperature -40°C
Series Number 33472
Maximum Operating Temperature +125°C
Housing Material PS
775 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 5.872
units
Per unit
Per Pack*
5 - 95
MYR5.872
MYR29.36
100 - 370
MYR5.132
MYR25.66
375 - 1495
MYR4.826
MYR24.13
1500 - 2995
MYR4.596
MYR22.98
3000 +
MYR4.394
MYR21.97
*price indicative
