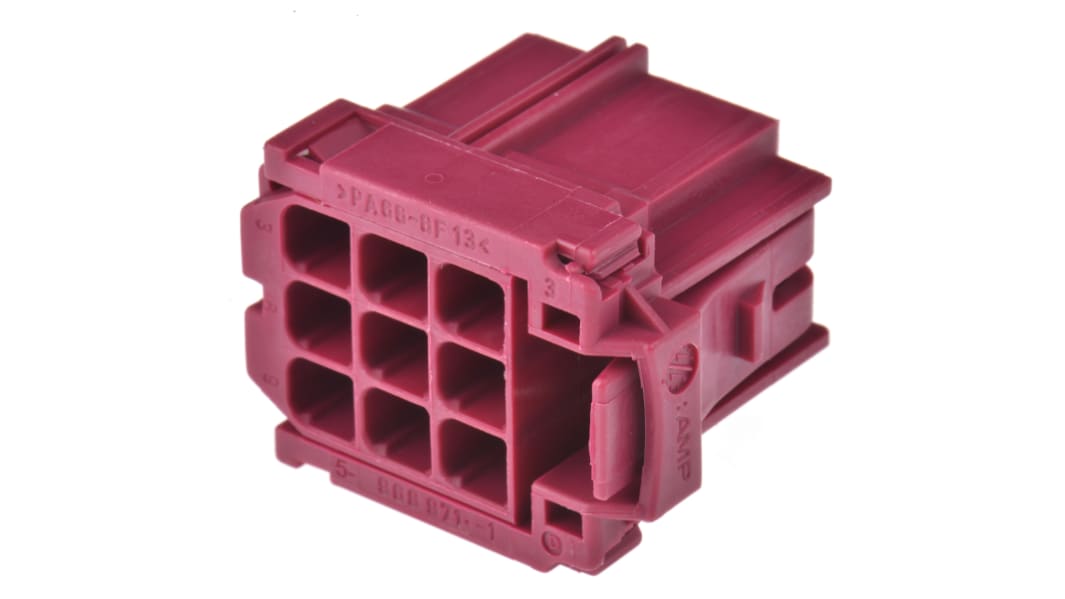

TE Connectivity AMP MCP 2.8 Series, 3 Row 9 Way Panel Mount Socket Housing

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity MCP 2.8 Receptacle Housings with Secondary Locking

A range of unsealed MCP 2.8 receptacle housings with secondary locking mechanisms. These MCP 2.8 receptacle housings are made from PA 66 GF13 and accept a wire size range of 2.5mm2 FLR max, except for 3 way versions that accept a wire size range of 4mm2 FLR max. The various keying options for these MCP 2.8 automotive receptacle housings are shown in the table. For suitable MCP 2.8 tab housings please see stock number 726-9013 typically. Secondary locks are also available, please see stock number 726-9108 typically.

Features and benefits:

• Made from a strong PBT
• Mating tab width – 2.8mm
• Operating temperatures of -40°C to +120°C
• Wire-to-wire connection
• High reliability
• High vibration levels supported
• Protected locking lance

Applications:

• Automotive
• Industrial

TE Connectivity Multiple Contact Point System (MCP)

Specifications
Attribute Value
Type Housing
Number of Contacts 9
Gender Female
Number of Rows 3
Mounting Type Panel Mount
Series AMP MCP 2.8
Colour Purple
Height 28mm
Width 21mm
Depth 23.5mm
Contact Material Copper Alloy
Housing Material Nylon
Contact Plating Tin
320 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 2.754
units
Per unit
Per Pack*
5 - 120
MYR2.754
MYR13.77
125 - 370
MYR2.582
MYR12.91
375 - 995
MYR2.422
MYR12.11
1000 - 1995
MYR2.284
MYR11.42
2000 +
MYR2.16
MYR10.80
*price indicative
