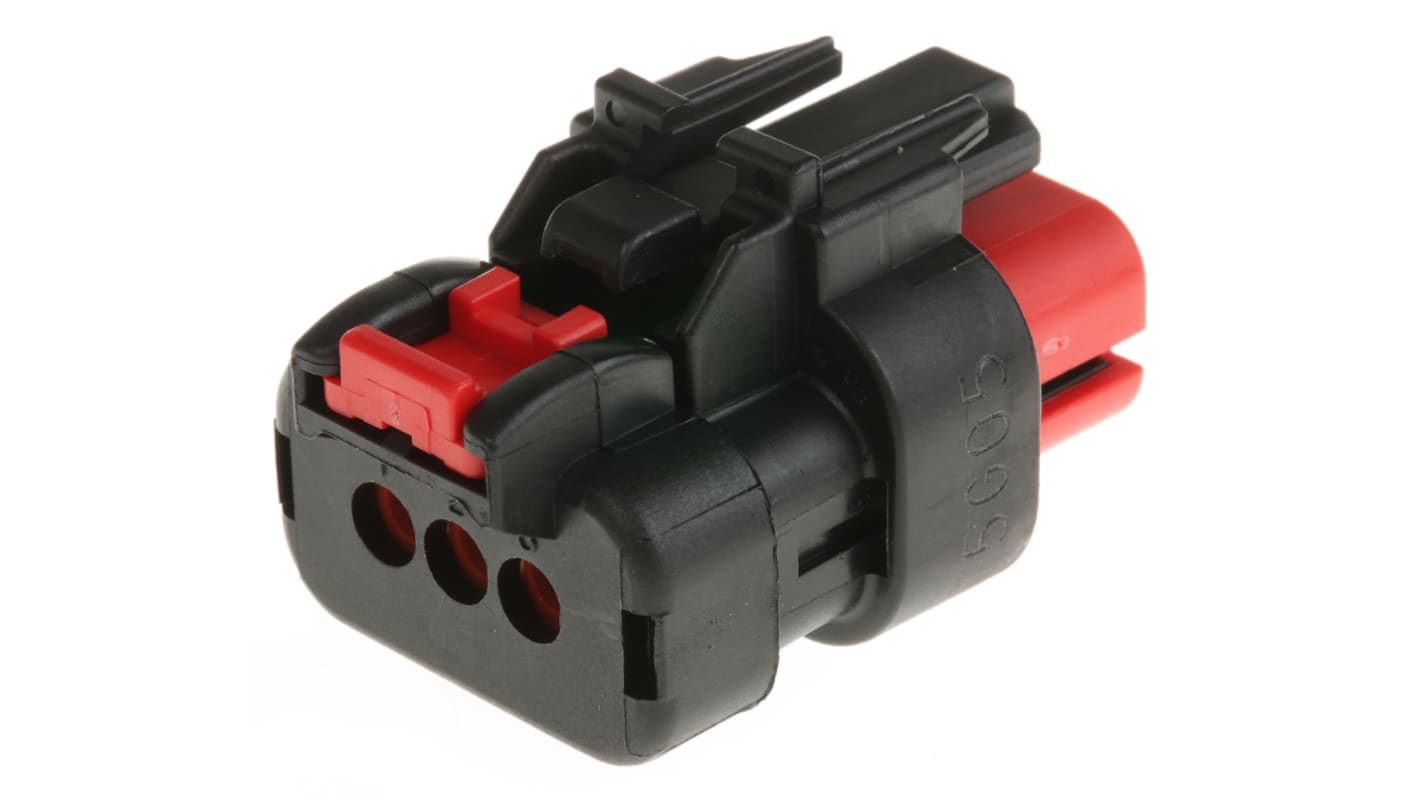

TE Connectivity AMPSEAL 16 Series, 1 Row 3 Way Cable Mount Socket Housing

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity AMPSEAL 16 Plug Style Receptacle Housings with Reduced Diameter Wire Seal

AMPSEAL 16 receptacle style housings for pin contacts with integral primary latch reinforcement and CPA for secure locking. These AMPSEAL 16 automotive connectors have colour coding and physical keying to prevent mis-mating. These environmentally sealed wire-to-wire and wire-to-device connectors are available in 2, 3, 4, 6, 8, and 12-way arrangements.
The AMPSEAL 16 series offer customers both male and female components and include either Thermoplastic or Glass Fibre Reinforced PBT housing material. These products have a cable mount mounting type with it’s connectors acting as a crimp termination method, this brings ease of use to customers as well as improved quality.

Features and Benefits
• Number of contacts: 2, 3, 4, 6, 8 and 12
• Cable exit angle: 180°
• Operating temperature range: -40°C to +125°C
• Pitch 4.5 mm
• Current: Up to 13 amps

FAQ
What vehicles are this component made for?
The AMPSEAL 16 connector system is targeted for off-road, heavy duty industrial, recreational and agricultural applications. This wire-to-wire and wire-to-device connector line was designed to meet the rigorous demands of an industry that requires the highest standards in performance.

TE Connectivity - AMPSEAL 16 Connector System

Specifications
Attribute Value
Number of Contacts 3
Type Housing
Gender Female
Number of Rows 1
Mounting Type Cable Mount
Series AMPSEAL 16
Colour Red
Height 23.47mm
Width 24.83mm
Depth 39.95mm
Housing Material Glass Fibre Reinforced PBT
206 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 9.73
units
Per unit
1 - 24
MYR9.73
25 - 74
MYR9.25
75 - 199
MYR8.78
200 - 399
MYR7.02
400 +
MYR6.50
Packaging Options:
