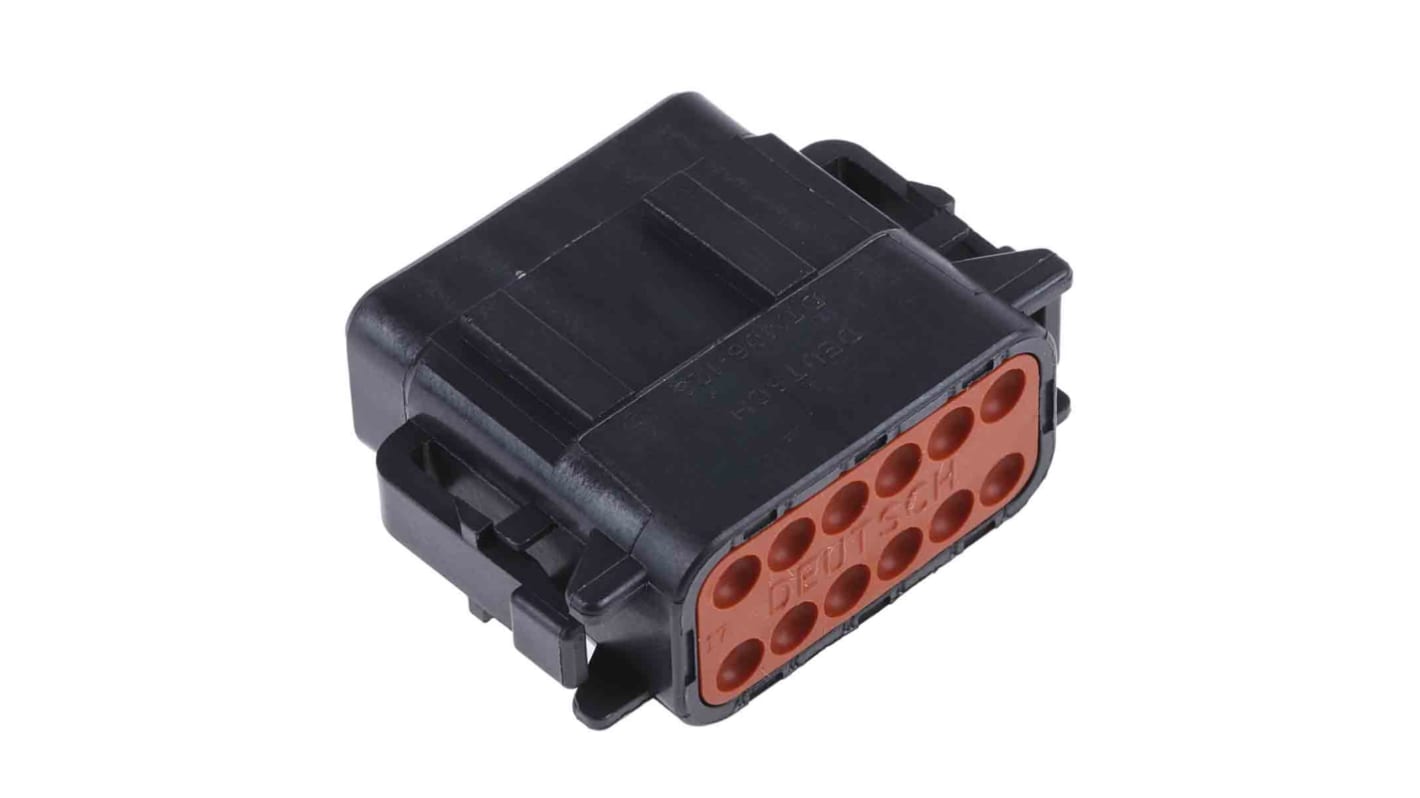

Deutsch DTM Series, 2 Row 12 Way Plug Connector, with Crimp Termination Method

  • RS Stock No. 724-2579
  • Mfr. Part No. DTM0612SB
  • Manufacturer Deutsch
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

DTM Series Plug with B Keying

Deutsch DTM Series connectors are ideal for transport and other harsh environment signal connector applications. THey are often used in engine compartments and transmission tunnels. The DTM series features a smaller contact and enhanced design in comparison to the DT series connector.

Features and Benefits

• B keyed Connector
• Tactile and audible connector mating
• Rugged thermoplastic connector housing
• Hand insertable/removable contacts
• Operating temperature range: -55 → +125 °C
• Dielecric withstand voltage 1500 V ac
• Nickel plated copper alloy contacts (available separately)
• Positive contact retention
• Suitable for Size 20 Contacts

Available in this Range

• Stock No. 724-2579 is a is a B-Keyed 12 way Plug Housing for Socket Contacts
• Stock No. 724-2585 is a is a B-Keyed 12 way Plug Housing for Socket Contacts with Boot Adaptor

Deutsch DT Series Connectors

Deutsch DT series connectors are ideally suited for applications that require a secure reliable connector in harsh environments such as under-the-hood, transmission tunnels and many others areas that require secure connections in both power and signal.

Specifications
Attribute Value
Type Connector
Number of Contacts 12
Gender Male
Number of Rows 2
Current Rating 7.5A
Series DTM
Colour Black
Termination Method Crimp
Height 20.22mm
Width 40.01mm
Depth 43.69mm
Minimum Operating Temperature -55°C
Contact Plating Nickel
Housing Material Thermoplastic
Contact Material Copper Alloy
Maximum Operating Temperature +125°C
7 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 36.67
units
Per unit
1 - 19
MYR36.67
20 - 74
MYR32.32
75 - 299
MYR28.80
300 - 599
MYR27.29
600 +
MYR25.82
