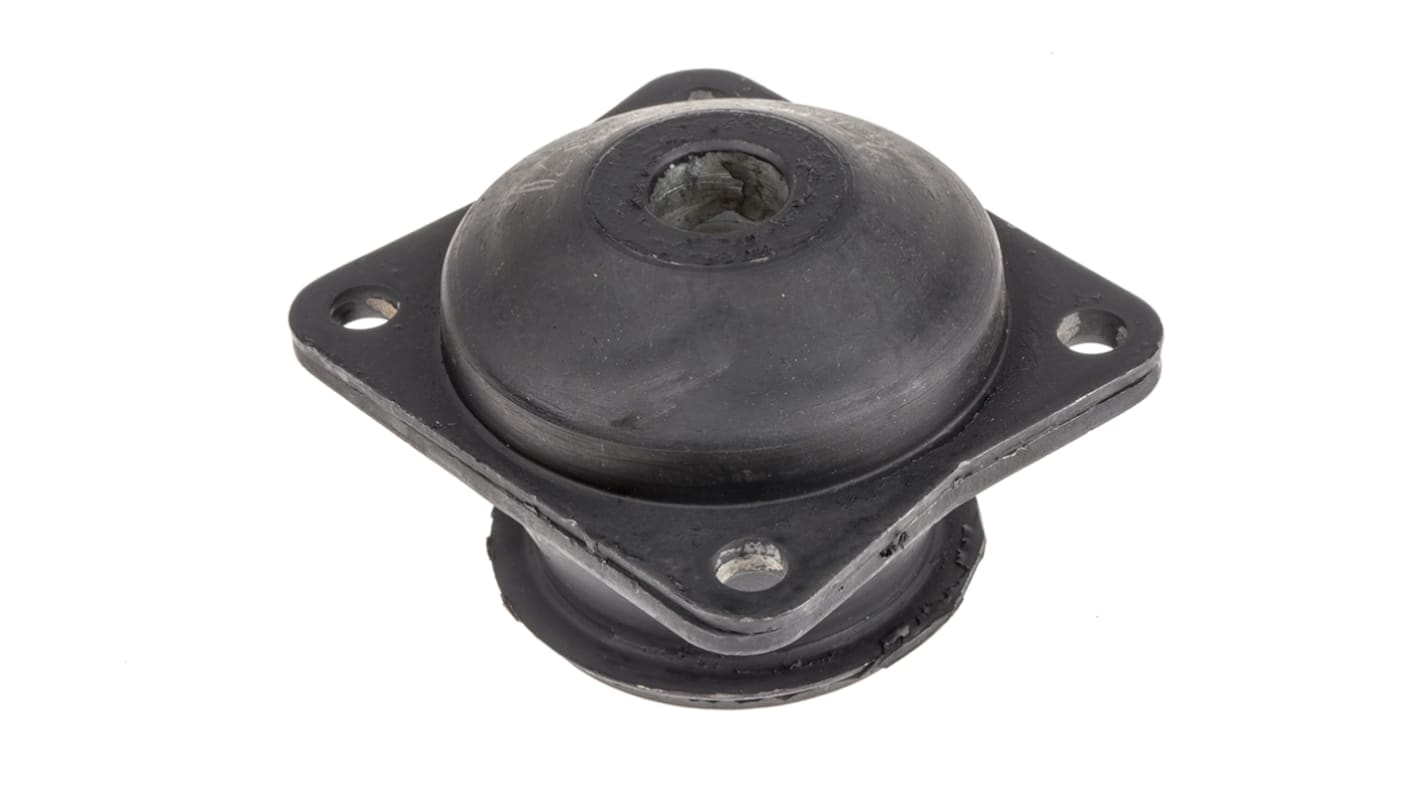

RS PRO Square M16 Anti Vibration Mount with 610kg Compression Load
- RS Stock No.:
- 171-2668
- Manufacturer:
- RS PRO
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR342.33
| Units | Per Unit |
| 1 - 4 | MYR342.33 |
| 5 - 24 | MYR335.50 |
| 25 + | MYR328.79 |
- RS Stock No.:
- 171-2668
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
The KMC mounts are designed for use on heavy machinery and plant equipment so they are very robust.
Compact fail-safe design
Mounts with cut-out in the rubber section are available where a different vertical/horizontal stiffness ratio is required
Applications:
Lorry or tractor cabs
Engine & transmission
Mobile generators
Suspension for:
Heavy vehicle equipment
Fuel tank suspension
Under-slung compressors
Mounts with cut-out in the rubber section are available where a different vertical/horizontal stiffness ratio is required
Applications:
Lorry or tractor cabs
Engine & transmission
Mobile generators
Suspension for:
Heavy vehicle equipment
Fuel tank suspension
Under-slung compressors
Specifications
Attribute | Value |
|---|---|
| Thread Size | M16 |
| Diameter | 75mm |
| Foot Height | 72.5mm |
| Overall Height | 74mm |
| Static Load Capacity | 610kg |
| Material | Natural Rubber |
| Metalwork | Zinc Plated Steel |
| Compression Load | 610kg |
| Shore Hardness | 70 Shore A |
| Foot Shape | Square |
| Series | KMC |
| Maximum Operating Temperature | +100°C |
| Compression Deflection | 18.8mm |
