RS PRO Rectangular M12 Anti Vibration Mount with 0 Compression Load
- RS Stock No.:
- 171-2663
- Manufacturer:
- RS PRO
20 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR125.52
| Units | Per Unit |
| 1 - 4 | MYR125.52 |
| 5 + | MYR103.30 |
- RS Stock No.:
- 171-2663
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

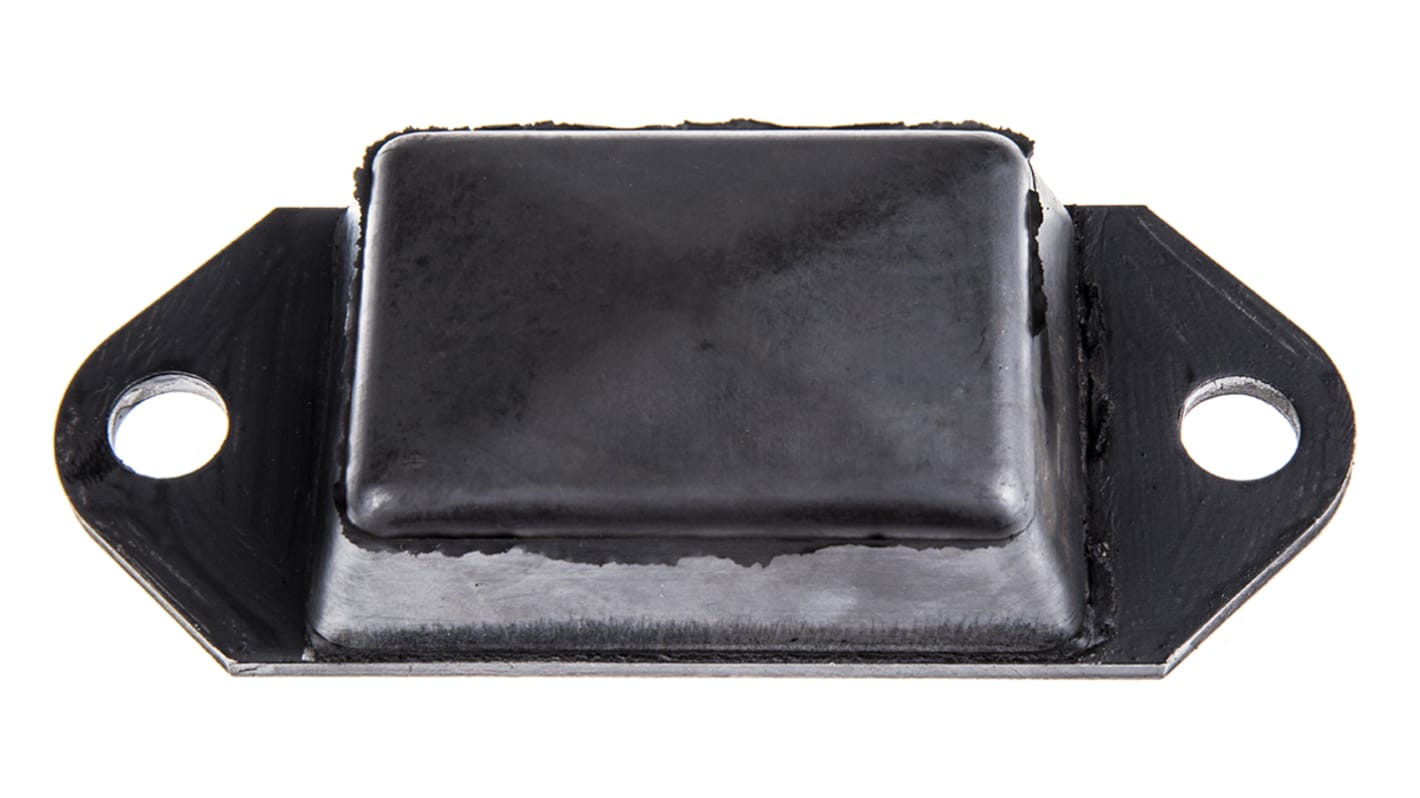

RS PRO Anti-Vibration Mount
The RS PRO DM rectangular buffer is designed as a hard rubber stop/damper and used for protecting equipment from impact forces. This mount provides progressive stiffness under increasing loads. Its dimensions are 156mm length x 64mm width x 37mm height.
Features and Benefits
• Diameter is 13.5mm
• Efficient design
• Metal is mild steel
• Efficient design
• Metal is mild steel
Applications
• Agricultural applications
• Machinery hard stops
• Rear bump stops for tipper trailers
• Machinery hard stops
• Rear bump stops for tipper trailers
Specifications
Attribute | Value |
|---|---|
| Thread Size | M12 |
| Diameter | 156mm |
| Overall Height | 37mm |
| Static Load Capacity | 0 |
| Foot Shape | Rectangular |
| Shore Hardness | 60 Shore A |
| Metalwork | Zinc Plated Steel |
| Compression Load | 0 |
| Maximum Operating Temperature | +100°C |
| Series | DM |
