RS PRO Analogue Panel Ammeter DC, 57mm x 44mm, ±1.5 % Moving Coil
- RS Stock No.:
- 186-2533
- Manufacturer:
- RS PRO
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR146.59
| Units | Per Unit |
| 1 - 4 | MYR146.59 |
| 5 - 24 | MYR143.51 |
| 25 + | MYR118.11 |
- RS Stock No.:
- 186-2533
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- IN
Product Details

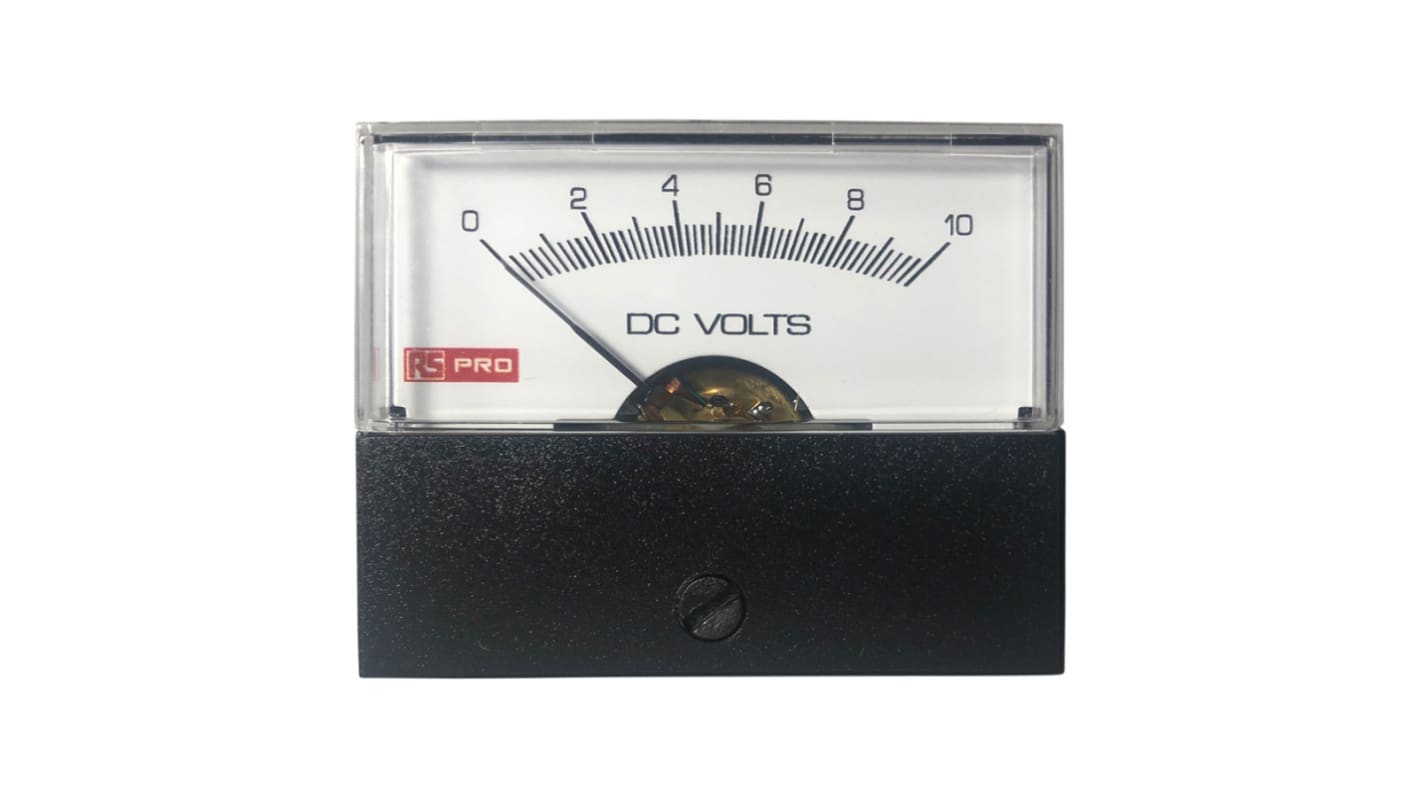

RS PRO DC Analogue Panel Voltmeter
The RS PRO 1.5in 57mm x 44mm cut-out DC analogue panel voltmeter has a measurement range of 0V to 10V input. The meter consists of a centre cored, self-shielding moving coil movement using pivots, hairsprings, and sprung jewels. The meter is enclosed in a polycarbonate cover. This innovative design features a detachable lower fascia plate that allows good flexibility.
Features and Benefits
• Operating temperature ranges between 0°C and 60°C
• Accuracy: 1.5%
• Pointer: Knife-edge type
• Relative humidity: 25% to 80%
• Rear zero adjuster
• High torque pivot and jewel movement
• Accuracy: 1.5%
• Pointer: Knife-edge type
• Relative humidity: 25% to 80%
• Rear zero adjuster
• High torque pivot and jewel movement
Applications
• Marine
• Switchgear
• Distribution systems
• Control panels
• Embedded generation, energy management, building management
• Utility power monitoring
• Motor monitoring
• Switchgear
• Distribution systems
• Control panels
• Embedded generation, energy management, building management
• Utility power monitoring
• Motor monitoring
Certifications
• UL 94 V-0 approved
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP42 rated
• EN 61010-1
• VDE 0110-1: 2008-01 approved
• IEC 529
• IEC 1010
• ISO 20653: 2006-08
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP42 rated
• EN 61010-1
• VDE 0110-1: 2008-01 approved
• IEC 529
• IEC 1010
• ISO 20653: 2006-08
Specifications
Attribute | Value |
|---|---|
| Current Type | DC |
| Moving Element | Moving Coil |
| Cutout Height | 57mm |
| Cutout Width | 44mm |
| Depth | 45.7mm |
| Meter Accuracy | ±1.5 % |
| Minimum Temperature | 0°C |
| Maximum Temperature | +60°C |
