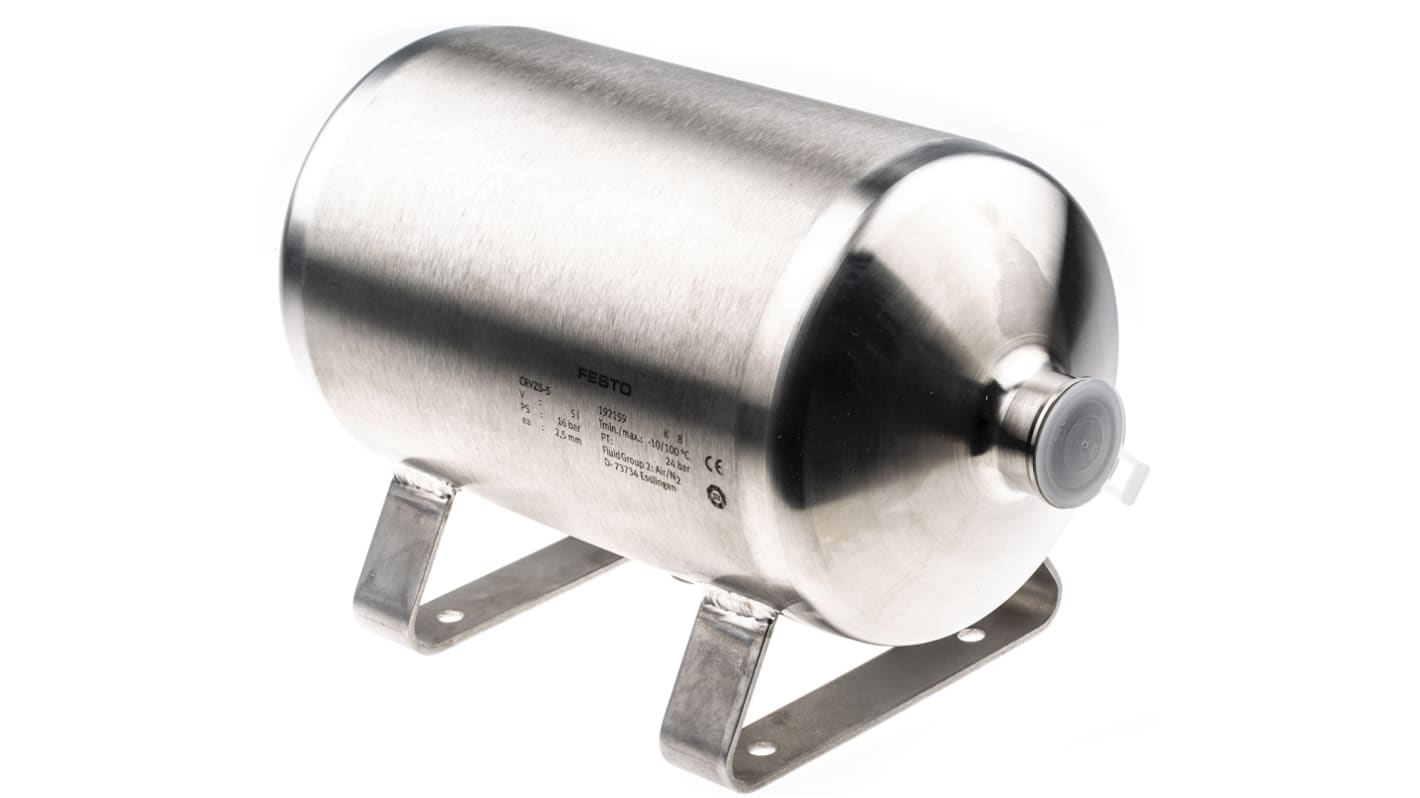

Festo Air Reservoir 5L, G 1, CRVZS Series

  • RS Stock No. 121-5505
  • Mfr. Part No. CRVZS-5
  • Manufacturer Festo
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Festo CRVZS Air Reservoirs

Festo CRVZS series air reservoirs provide an effective solution for smoothing air pressure fluctuations within a compressed air systems. The air tanks can also operate as an accumulator when a large surge of air is required. They can also be used in collaboration with pneumatic control valves to create time delays for pressure build-up in the system.

Features and Benefits

• Operating pressure up to 16 bar
• Available in 2, 5, 10 and 20 litre capacities
• Can be used with compressed air, in accordance with ISO 85731:2010, or with nitrogen
• Constructed from high-alloy stainless steel
• Free of copper and PTFE

Installation of an air reservoir

The CRVZS series accumulators are easy to install and only requires air line connection. Threaded pneumatic connection ports facilitate integration into new or existing high pressure air systems. Stainless steel mounting brackets allow the reservoirs to be mounted vertically or horizontally.

Festo CRVS Air Reservoirs

Festo CRVS air reservoirs are easy to install and only requires air line connection. They provide an effective resolution for smoothing pressure fluctuations and can be used as an accumulator when a large surge or air is required. They can also be used in collaboration with pneumatic control valves to create time delays for pressure build-up in the system. Available in 2, 5, 10 and 20 litre capacities.

Specifications
Attribute Value
Manufacturer Series CRVZS
Reservoir Bore 40mm
Volume 5L
Maximum Pressure 16bar
Port Connection G 1
Weight 3.6g
Maximum Operating Temperature +100°C
Minimum Operating Temperature -10°C
