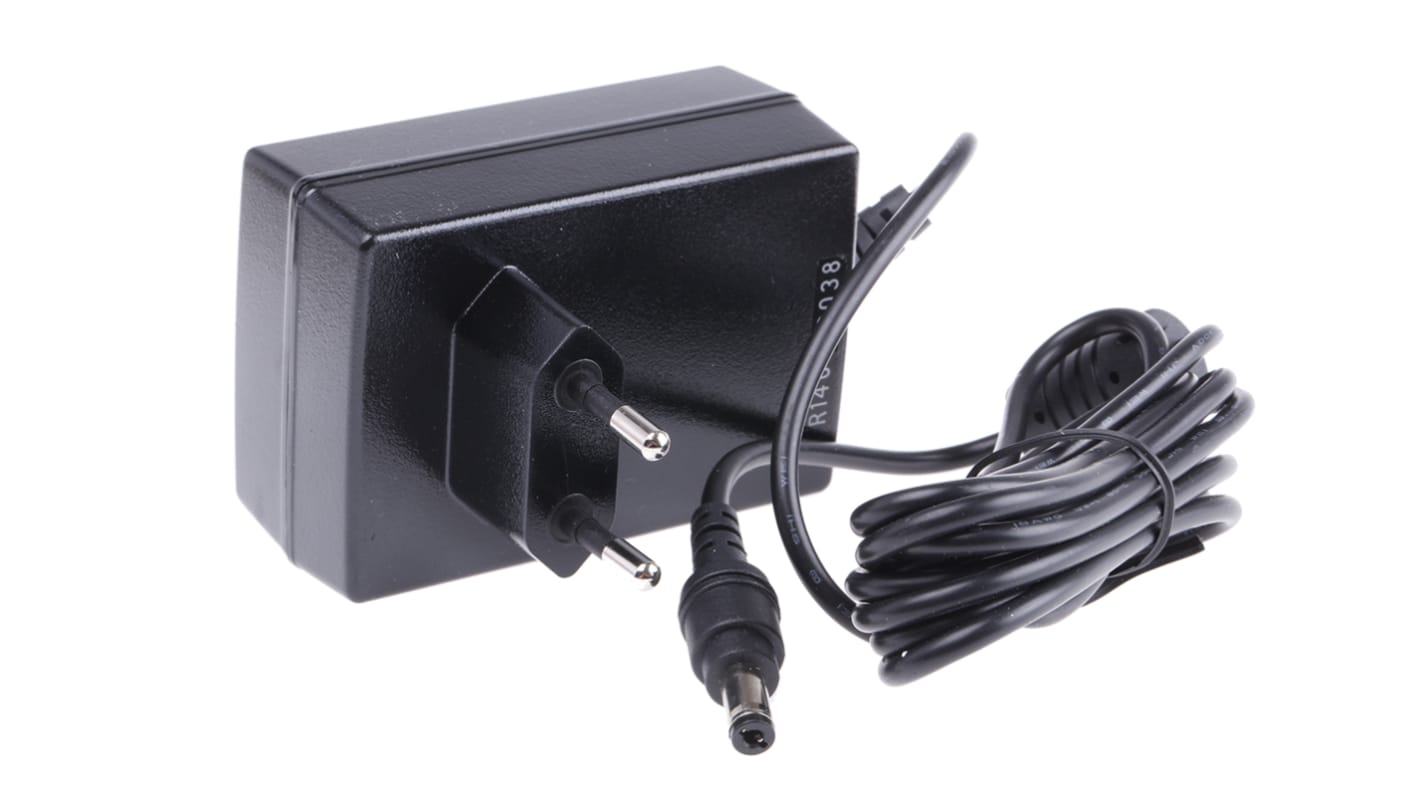

Mean Well, 25W Plug In Power Supply 24V dc, 1.04A, Level VI Efficiency, 1 Output Universal, 2-Pin Type C - EuroPlug

  • RS Stock No. 791-0932
  • Mfr. Part No. GSM25E24-P1J
  • Manufacturer Mean Well
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

2-Pin Euro Power Supply, ErP, Energy Saving, 5W to 25W, Medical

The GSM18E is complying with international medical safety regulations, these plug in power supplies also possess a low leakage current ˂50 μA and low no load power consumption ˂0.1W, which can fulfil the demands of “patient contact” medical applications. The GSM18E series also complies with level V energy saving regulations, such as ErP step 2 and EISA 2007. These 2 pin Euro plug power supplies are class II power units and enclosed by UL 94V-0 rated plastic case. The GSM18E has TUV, CB and CE certificates, which guarantee the safety for different applications, such as medical equipment requiring low leakage current, portable medical equipment, home healthcare equipment and any electrical systems that require low no load power consumption.

Universal AC input / Full range
2 pole EURO plug
Low leakage current <50 A
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Medical safety approved (2 ´ MOPP between primary to secondary)
Class Ⅱ power (without earth pin)
LED indicator for power on
No load power consumption<0.1W
ErP step2 compliant (level Ⅴ)
Meet EISA 2007 (Energy Independence and Security Act)
Optional lock type DC plug
3 years warranty

Approvals

TUV EN60601-1, 60601-1-11

Switch Mode - Mean Well

Specifications
Attribute Value
Type Universal
Plug Type Type C
Output Voltage 24 V dc
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac
Output Current 1.04A
Maximum Temperature +60°C
Output Connector 2.1 x 5.5 x 11 mm Centre Positive
Input Connector EU Plug
Number of Outputs 1
Power Rating 25W
Cable Length 1.8m
Medical Approved Yes
Standards Met ErP Compliant
Load Regulation ±2%
Energy Efficiency Level VI
Minimum Temperature -25°C
Length 79mm
Depth 33mm
Width 54mm
1 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 148.88
units
Per unit
1 - 4
MYR148.88
5 - 9
MYR141.49
10 - 24
MYR134.03
25 - 49
MYR126.58
50 +
MYR119.13
