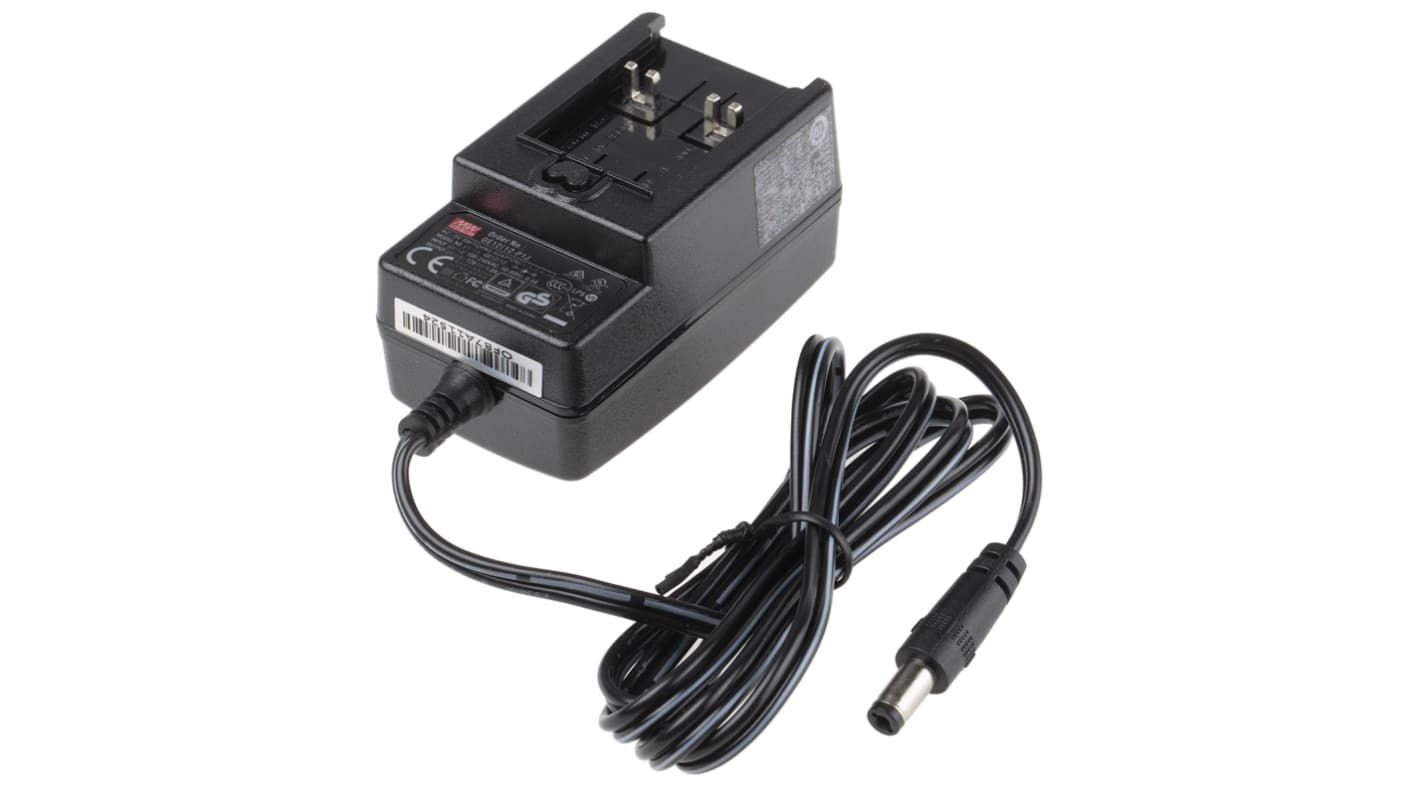

Mean Well, 12W Plug In Power Supply 12V dc, 1A, Level VI Efficiency, 1 Output Switched Mode Power Supply,

  • RS Stock No. 706-6467
  • Mfr. Part No. GE12I12-P1J
  • Manufacturer Mean Well
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

ErP Plug-In Travel Power Supply, Energy Saving, 10W to 24W

Energy saving power supplies
ErP level VI
No load power consumption< 0.3W
Meets EISA 2007 (Energy Independence and Security Act) for 5∼24V
Class II power (without earth pin)
Overload, overvoltage and short circuit protection
LED power on indicator
Compatible with UK (1783436), Euro (1783437), US (1783438), Australian (1783435) and mixed plugs (1783439) (Plugs Not Included)
Output lead fitted with a centre positive 2.1mm jack plug
EMC compliance to FCC part 15, EN55022 class B, GB9254 class B
Harmonic compliance to EN 61000-3-2,3

Note

Conforms to Energy-related Product Directive 2009/125/EC.

Power derates above 30°C.
MTBF to MIL-HDBK-217F.

Standards

UL60950-1, CSA C22.2, TUV EN60950 -1, CCC GB4943

Approvals

TUV, CCC, UL recognised for Canada & US, C-Tick

Switch Mode - Mean Well

Specifications
Attribute Value
Type Switched Mode Power Supply
Plug Type Australia/China, European Plug, UK, US/Japan
Output Voltage 12 V dc
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac
Output Current 1A
Maximum Temperature +50°C
Output Connector 2.1 x 5.5 x 11 mm Centre Positive
Input Connector Universal Plug
Number of Outputs 1
Power Rating 12W
Cable Length 1m
Length 70.7mm
Standards Met ErP Compliant
Load Regulation ±3%
Energy Efficiency Level VI
Minimum Temperature -10°C
Width 40mm
Depth 38.8mm
1083 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 96.45
units
Per unit
1 - 4
MYR96.45
5 - 9
MYR91.63
10 - 24
MYR86.81
25 - 49
MYR81.99
50 +
MYR77.17
