EOS, 30W Plug In Power Supply 15V dc, 2A, 1 Output Switched Mode Power Supply, Australia/China, European Plug, UK,

  • RS Stock No. 668-9220
  • Mfr. Part No. LFZVC30NP15-I
  • Manufacturer EOS
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

30W Plug Top, Energy Saving ZVC Series

The New 30Watt NP Series from EOS are ideal for portable computing, multimedia, industrial, networking, printing and battery charging applications. The new NP series of power adapters are fully compliant with CEC and Energy Star
IV requirements and provide their full output power without the need for fan cooling. The NP series have an Inter-Changeable connector pack allowing you to use the NP Series Globally.

Universal input voltage

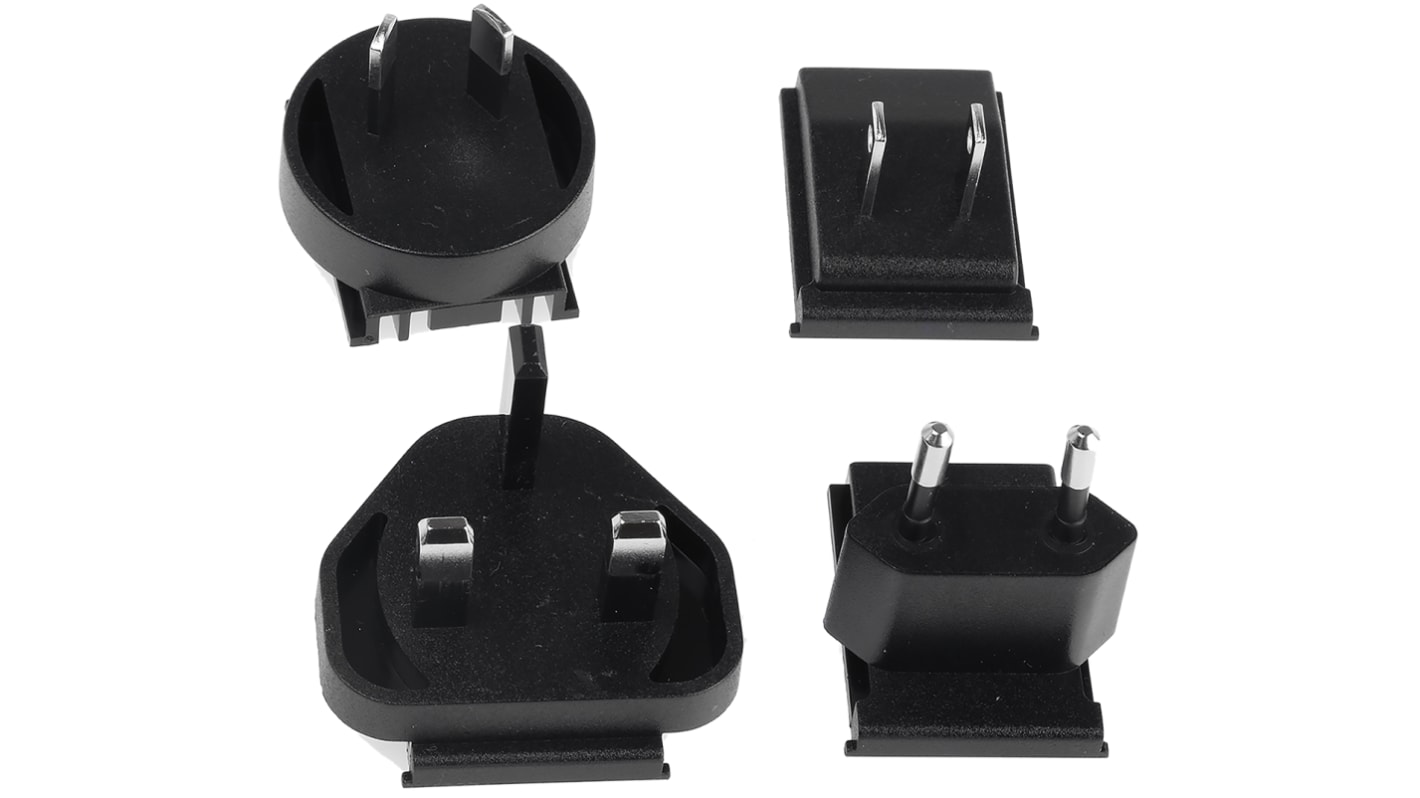

Inter-changeable connection plug top design
High efficiency, no load standby power < 0.3W
Fully regulated and protected output
EMI/RFI filter to EN55022-B, FCC2/15-B, CISPR22-B
Fitted with a 1.2m output lead with right angled jack plug (I/D 2.54 x O/D 5.54 x L 9.5mm, centre pin positive)

Note

Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.

Standards

UL, TUV, EN60950-1

Approvals

UL, CSA

Switch Mode - EOS

Specifications
Attribute Value
Type Switched Mode Power Supply
Plug Type Australia/China, European Plug, UK, US/Japan
Output Voltage 15 V dc
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac
Output Current 2A
Maximum Temperature +40°C
Output Connector 2.1 x 5.5 x 9.5 mm Centre Positive Right Angle Jack
Input Connector Universal Plug
Number of Outputs 1
Power Rating 30W
Cable Length 1.52m
Standards Met ErP Compliant
Load Regulation ±5%
Width 43.5mm
Depth 35.7mm
Minimum Temperature -10°C
Length 82mm
72 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 151.73
units
Per unit
1 - 4
MYR151.73
5 - 9
MYR144.14
10 - 24
MYR136.53
25 - 49
MYR128.95
50 +
MYR121.37
