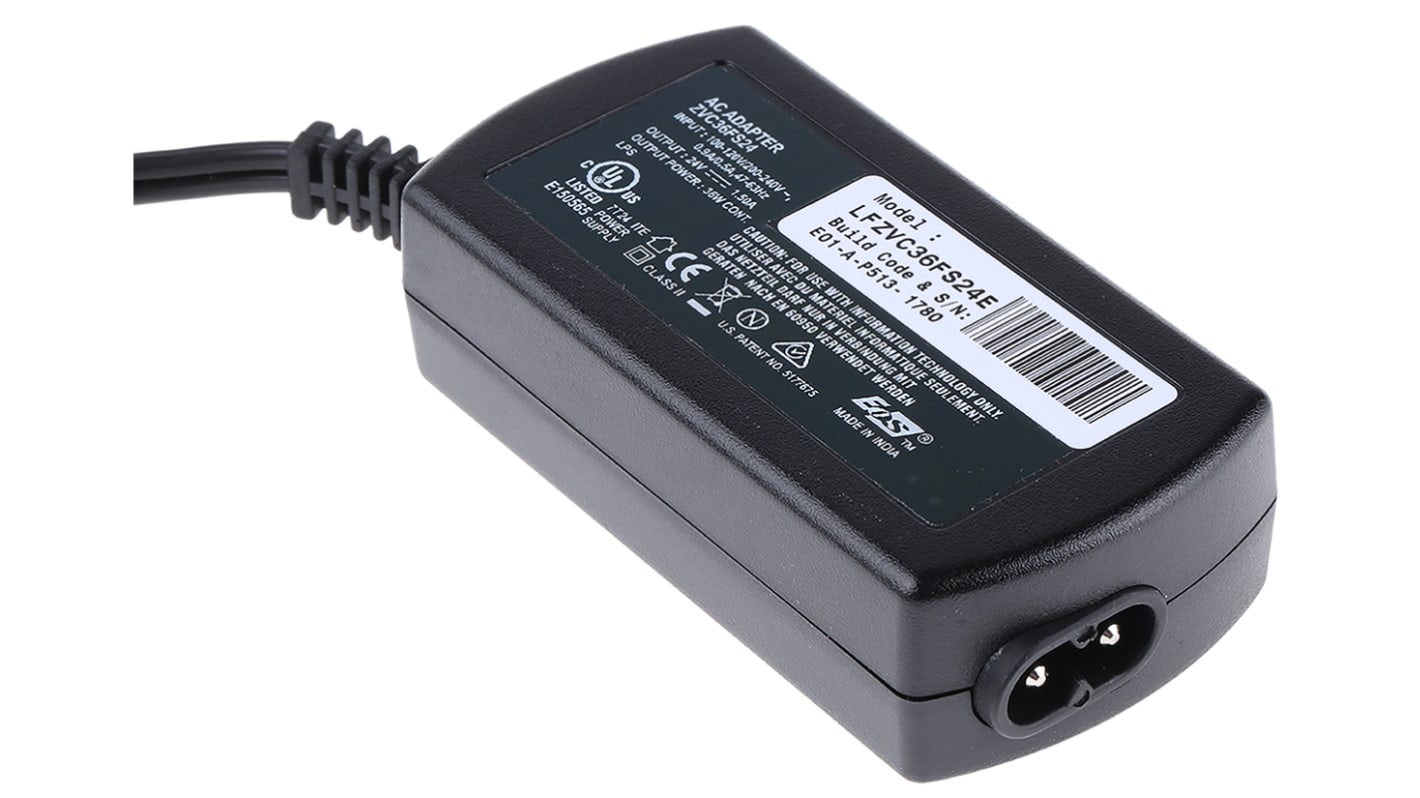

EOS Power Brick AC/DC Adapter 24V dc Output, 1.5A Output

RS Stock No.:: 377-7090
Mfr. Part No.:: CEL-22-LFeZVC36FS24E8
Manufacturer:: EOS

EOS Power Brick AC/DC Adapter 24V dc Output, 1.5A Output

View all AC/DC Adapters

In Global stock for delivery within 4 - 6 working days

Added

View basket

Price Each

MYR318.23

Units	Per Unit
1 - 9	MYR318.23
10 - 49	MYR312.65
50 +	MYR304.54

RS Stock No.:: 377-7090
Mfr. Part No.:: CEL-22-LFeZVC36FS24E8
Manufacturer:: EOS

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: IN

Product Details

EOS Desktop Power Supply

The EOS ZVC series desktop power supply is the latest invention with a high-quality adapter and a voltage rating of 24VDC. It provides 36W of continuous output power in a high-quality, compact enclosure suitable for many general power applications. It has an input frequency range from 47Hz to 63Hz. While the input voltage rating ranging from 90VAC to 132VAC/180VAC to 264VAC, its maximum input leakage current is less than 25μA. The power supply has IEC320 C8 input connector and 1m output lead with a right-angled 2.5mm power plug.
Note:
Non-compliant for industrial use only, not in the scope of Regulation (EC) No 125 / 2009. MTBF to MIL-HDBK-217F.

Features and Benefits

Output current is 1.50A
High efficiency
Fully regulated and protected output
Ultra miniature and lightweight design

Applications

Netbook power supply
Notebook power supply

Certifications

VDE
UL approved
NORDICS
MITI
EN5022-B
CISPR22-B
FCC
Part 15 class B
EN50082-1
IEC60950
CSA C22.2 No.60950
EN60950,
UL1950 class 2 SELV

Specifications

Attribute	Value
Adapter Type	Power Brick Adapter
Output Voltage	24V dc
Input Voltage	90 → 264V ac
Output Current	1.5A
Maximum Temperature	+40°C
Output Connector	2.54 x 5.49 mm Centre Positive
Input Connector	IEC 320-C8
Number of Outputs	1
Cable Length	1000mm
Efficiency	90%
MTBF	100000h
Length	88.9mm
Width	44.7mm
Line Regulation Range	±0.5%
Load Regulation	±5%
Energy Efficiency Level	III
Depth	24.57mm
Minimum Temperature	0°C
