EOS Power Brick AC/DC Adapter 12V dc Output, 3A Output
- RS Stock No.:
- 377-7062
- Mfr. Part No.:
- CEL-22-LFeZVC36FS12E8
- Manufacturer:
- EOS
Stock check temporarily unavailable - call for stock availability
Added
Price Each
MYR327.03
| Units | Per Unit |
| 1 - 9 | MYR327.03 |
| 10 - 49 | MYR321.34 |
| 50 + | MYR305.27 |
- RS Stock No.:
- 377-7062
- Mfr. Part No.:
- CEL-22-LFeZVC36FS12E8
- Manufacturer:
- EOS
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

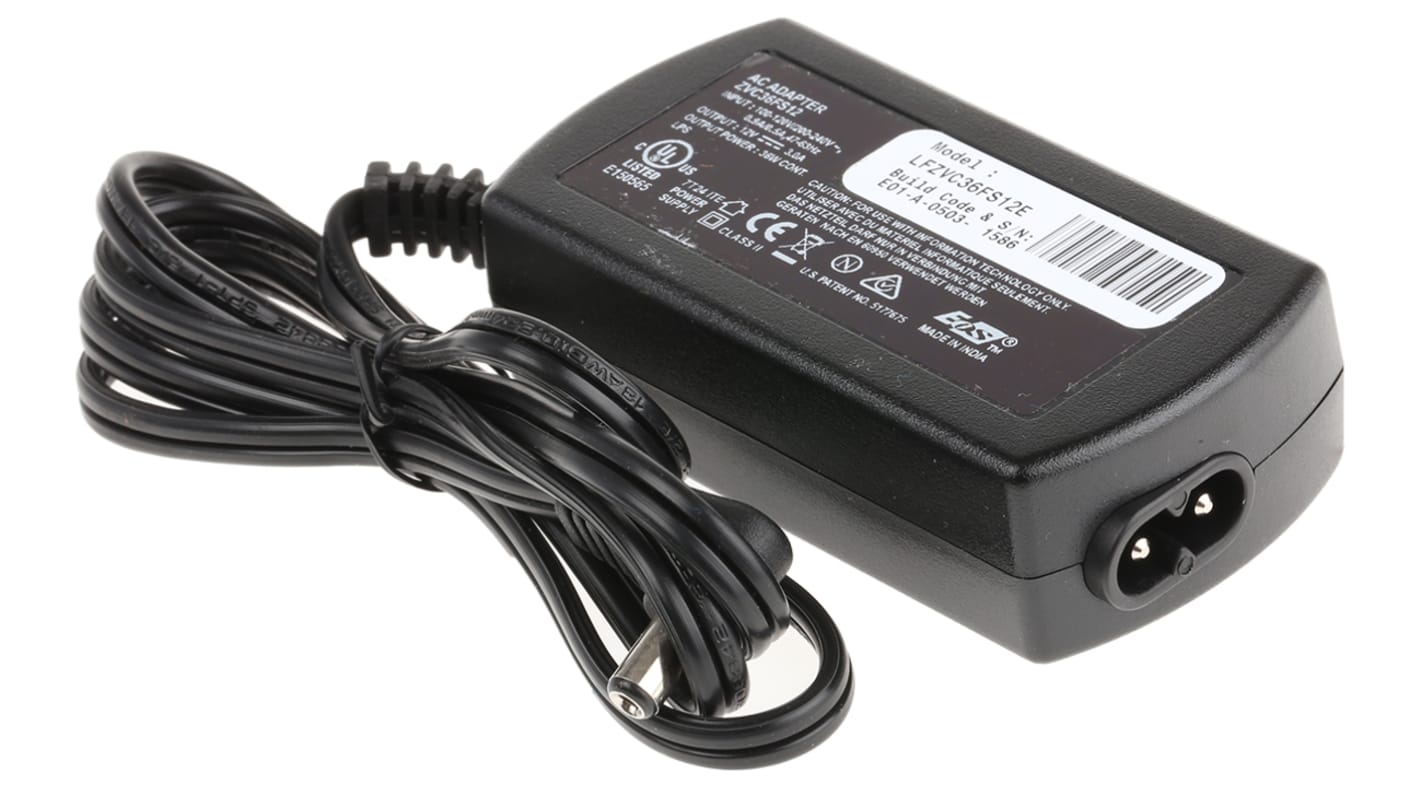

EOS Desktop Power Supply
The EOS ZVC series desktop power supply is the latest invention with a high-quality adapter and a voltage rating of 12VDC. It provides 36W of continuous output power in a high-quality, compact enclosure suitable for many general power applications. It has an input frequency range from 47Hz to 63Hz. While the input voltage rating ranging from 90VAC to 132VAC/180VAC to 264VAC, its maximum input leakage current is less than 25μA. The power supply has IEC320 C8 input connector and 1m output lead with a right-angled 2.5mm power plug.
Note:
Non-compliant for industrial use only, not in the scope of the regulation (EC) No 125 / 2009. MTBF to MIL-HDBK-217F.
Note:
Non-compliant for industrial use only, not in the scope of the regulation (EC) No 125 / 2009. MTBF to MIL-HDBK-217F.
Features and Benefits
Output current is 3A
High efficiency
Fully regulated and protected output
Ultra miniature and lightweight design
High efficiency
Fully regulated and protected output
Ultra miniature and lightweight design
Applications
Netbook power supply
Notebook power supply
Notebook power supply
Certifications
VDE
UL approved
NORDICS
MITI
EN5022-B
CISPR22-B
FCC
Part 15 class B
EN50082-1
IEC60950
CSA C22.2 No.60950
EN60950,
UL1950 class 2 SELV
UL approved
NORDICS
MITI
EN5022-B
CISPR22-B
FCC
Part 15 class B
EN50082-1
IEC60950
CSA C22.2 No.60950
EN60950,
UL1950 class 2 SELV
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Power Brick Adapter |
| Output Voltage | 12V dc |
| Input Voltage | 198 → 264 V ac, 260 → 340V dc |
| Output Current | 3A |
| Maximum Temperature | +40°C |
| Output Connector | 2.54 x 5.49 mm Centre Positive |
| Input Connector | IEC 320-C8 |
| Number of Outputs | 1 |
| Cable Length | 1000mm |
| MTBF | 100000h |
| Efficiency | 90% |
| Line Regulation Range | ±0.5% |
| Energy Efficiency Level | III |
| Width | 44.7mm |
| Depth | 24.57mm |
| Length | 88.9mm |
| Load Regulation | ±5% |
| Minimum Temperature | 0°C |
