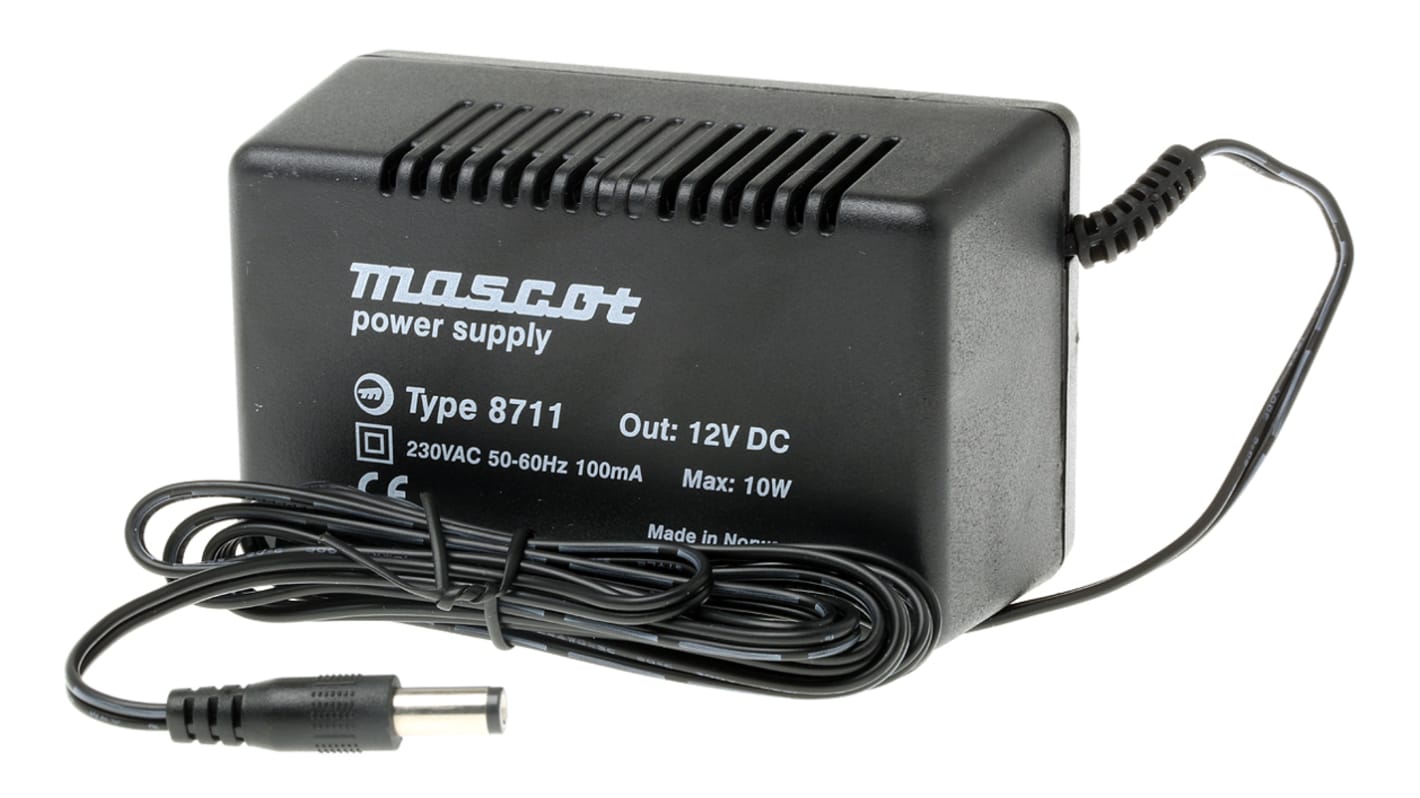

Mascot, 10W Plug In Power Supply 12V dc, 833mA, 1 Output Linear Power Supply, 2-Pin Type C - EuroPlug

  • RS Stock No. 218-4611
  • Mfr. Part No. 8711-12
  • Manufacturer Mascot
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): NO
Product Details

AC / DC mains adapters

Plug-in power supplies outputting a fixed, non-stabilised DC voltage.
Standard version supplied with a bridge rectifier and a capacitor.
Supplied with an approx. 1.7 m connector lead and an output connector with an internal diameter of 2.1 mm and an external diameter of 5.5 mm.
The polarity is positive inside the output connector.
Fitted with a European plug EEC 7/16

Note

Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No. 125/2009

Specifications
Attribute Value
Type Linear Power Supply
Plug Type Type C
Output Voltage 12 V dc
Input Voltage 230V ac
Output Current 833mA
Maximum Temperature +40°C
Output Connector 2.1 x 5.5 x 12 mm Centre Positive
Input Connector EU Plug
Number of Outputs 1
Power Rating 10W
Cable Length 1.7m
Width 51mm
Depth 63mm
Length 100mm
5 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 217.18
units
Per unit
1 - 4
MYR217.18
5 - 9
MYR213.34
10 - 24
MYR209.46
25 - 49
MYR205.34
50 +
MYR201.14
