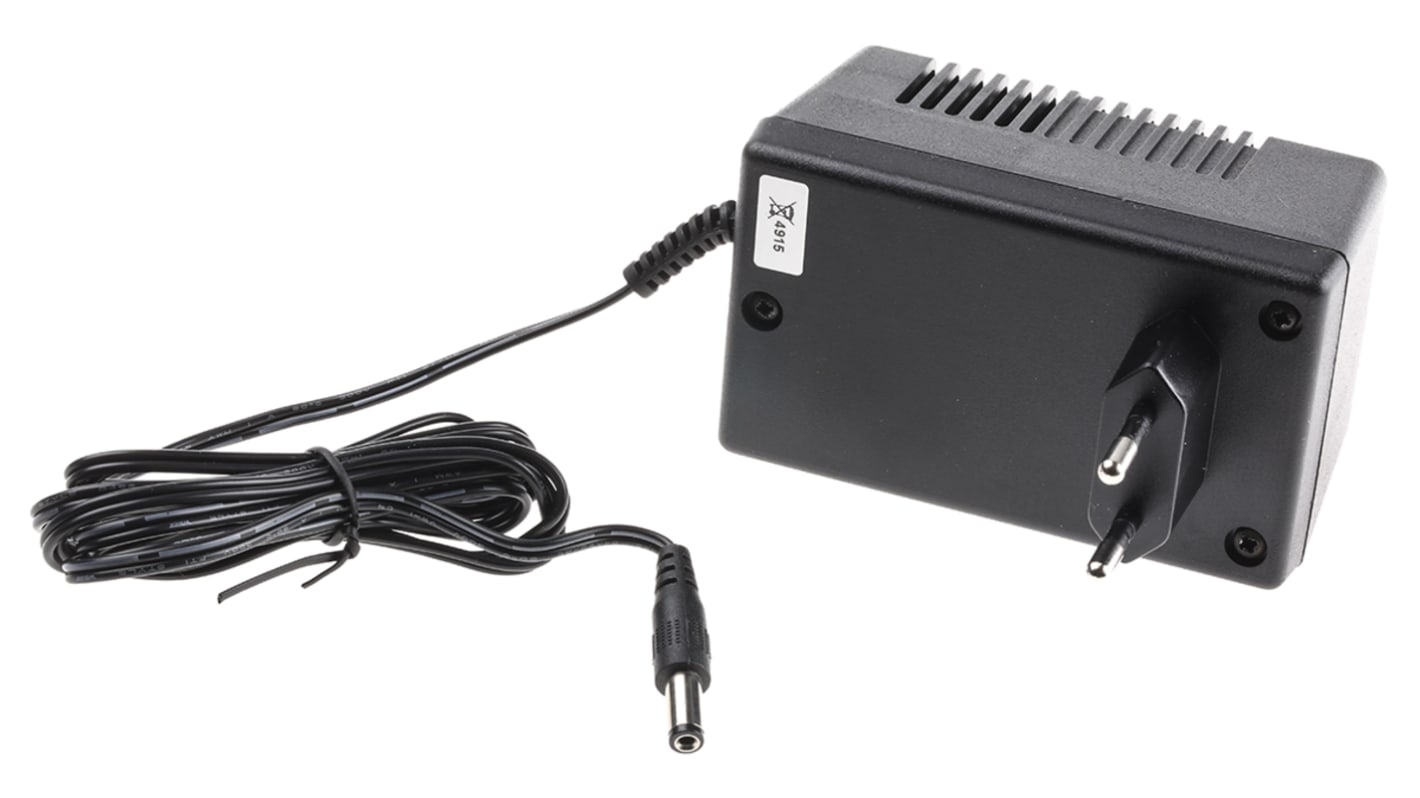

Mascot 6.5W Plug-In AC/DC Adapter 12V dc Output, 540mA Output
- RS Stock No.:
- 218-4582
- Mfr. Part No.:
- 8511-12
- Manufacturer:
- Mascot
35 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR200.01
| Units | Per Unit |
| 1 - 9 | MYR200.01 |
| 10 - 49 | MYR195.81 |
| 50 + | MYR189.94 |
- RS Stock No.:
- 218-4582
- Mfr. Part No.:
- 8511-12
- Manufacturer:
- Mascot
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
AC / DC mains adapters
Plug-in power supplies outputting a fixed, non-stabilised DC voltage.
Standard version supplied with a bridge rectifier and a capacitor.
Supplied with an approx. 1.7 m connector lead and an output connector with an internal diameter of 2.1 mm and an external diameter of 5.5 mm.
The polarity is positive inside the output connector.
Fitted with a European plug EEC 7/16
Standard version supplied with a bridge rectifier and a capacitor.
Supplied with an approx. 1.7 m connector lead and an output connector with an internal diameter of 2.1 mm and an external diameter of 5.5 mm.
The polarity is positive inside the output connector.
Fitted with a European plug EEC 7/16
Note
Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No. 125/2009
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | Type C |
| Output Voltage | 12V dc |
| Input Voltage | 230V ac |
| Output Current | 540mA |
| Maximum Temperature | +40°C |
| Output Connector | 2.1 x 5.5 x 12 mm Centre Positive |
| Input Connector | EU Plug |
| Number of Outputs | 1 |
| Power Rating | 6.5W |
| Cable Length | 1.7m |
| Type | AC/DC Adapter |
| Length | 95mm |
| Width | 51mm |
| Depth | 57mm |
